Rules Engine

Overview

The Rules Engine helps automate message processing using visual workflows composed of input sources, logic evaluations, and output destinations. Users can define rules by visually combining input, logic, and output nodes to determine how incoming messages are processed, evaluated, and responded to.

Features

1. Creation and Management

• Create Rules: Define the name of a new rule and initiate creation.
• Quick Actions: View, copy ID, enable/disable, or delete a rule directly from the list.

2. Node Configuration

• Input Nodes: Attach an MQTT subscriber input by selecting the channel and topic.
• Logic Nodes: Define conditions using comparison blocks, Lua scripts, or Go scripts.
• Output Nodes: Output processed data to MQTT publishers, Email recipients, or PostgreSQL databases.

3. Scripting and Templating

• Lua Script Editor: Use custom Lua scripts with a required logicFunction() for logic processing.
• Go Script Editor: Write Go-based logic for more advanced use cases (requires Go syntax compliance).
• Go Text Templating: Use dynamic value injection with:
  • {{.Result}}
  • {{.Result.<key>}}
  • {{.Message.<key>}}

4. Scheduling and Execution

• Scheduling: Define execution windows with start time, specific time, recurring intervals, and periods.
• Connection Layout: Visually connect all nodes to complete and activate a rule.

Use Cases

Here are some practical examples of how you can use the Rules Engine:

• Temperature Alerts: Notify users by email when temperature exceeds safe limits.

• Message Filtering: Only forward messages with specific fields or values.

• Unit Conversion: Convert sensor data from Celsius to Fahrenheit before publishing.

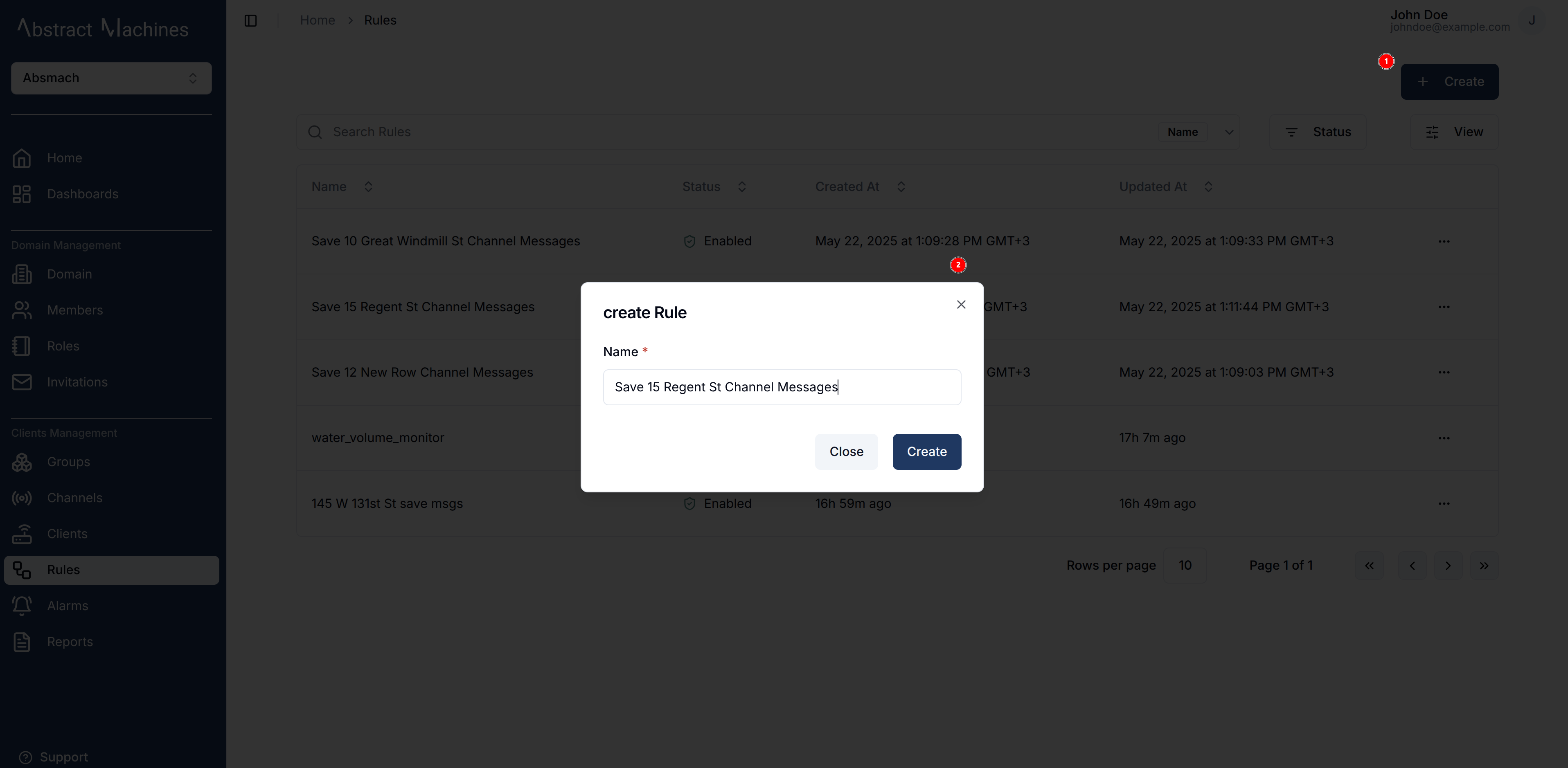

Create a Rule

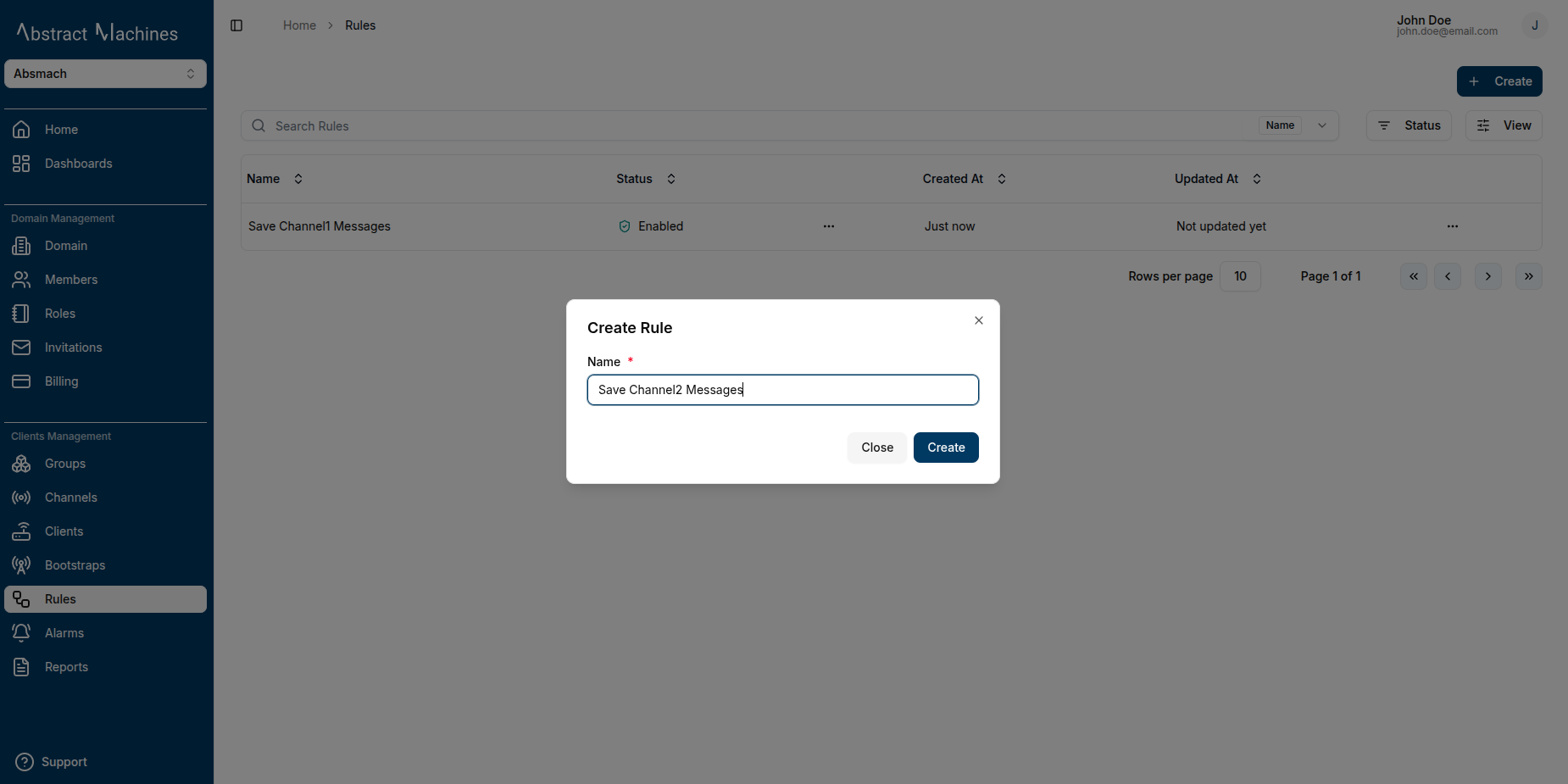

Navigate to the Rules section and click on the + Create button. Provide a name for your rule and click Create.

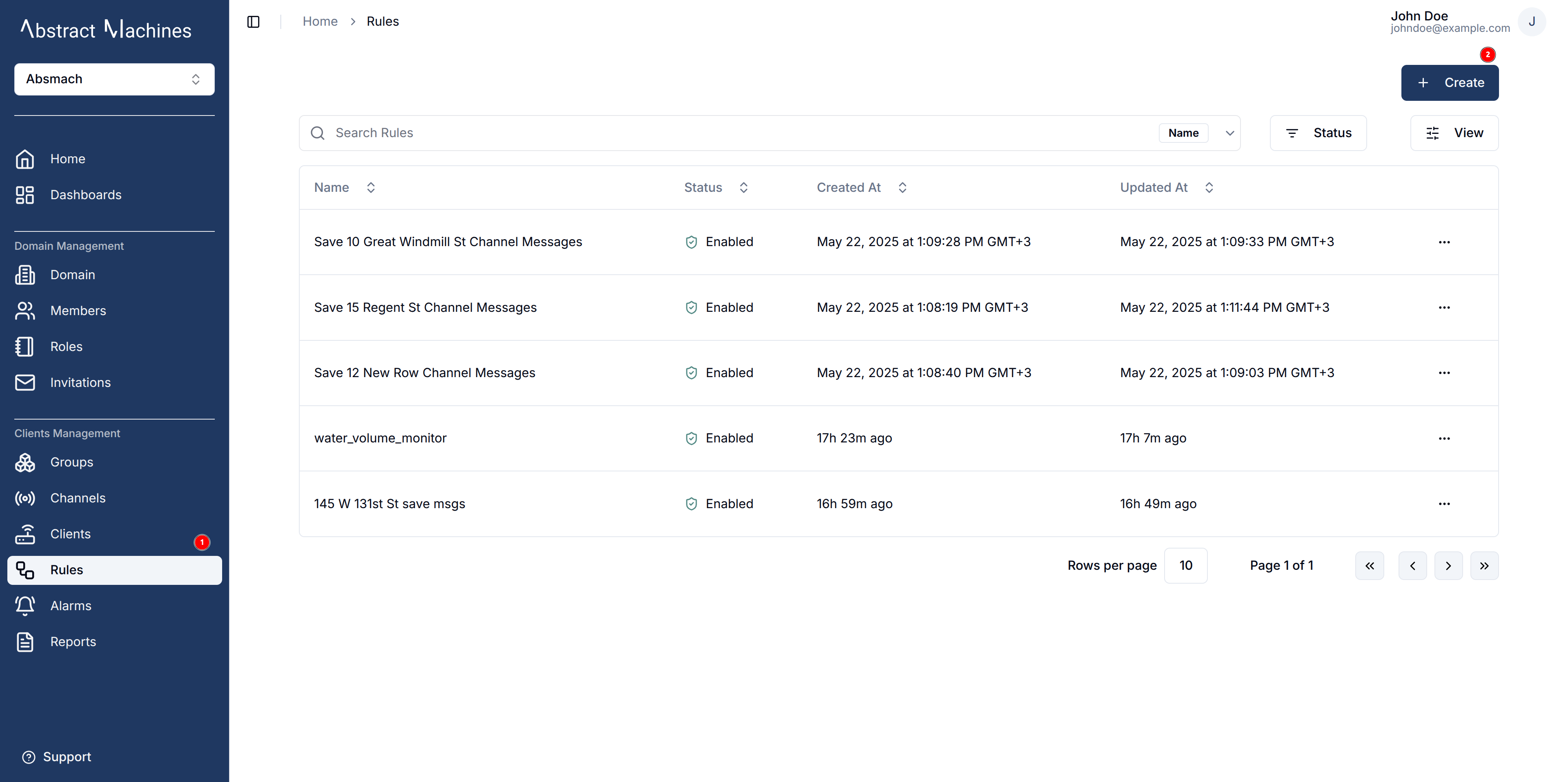

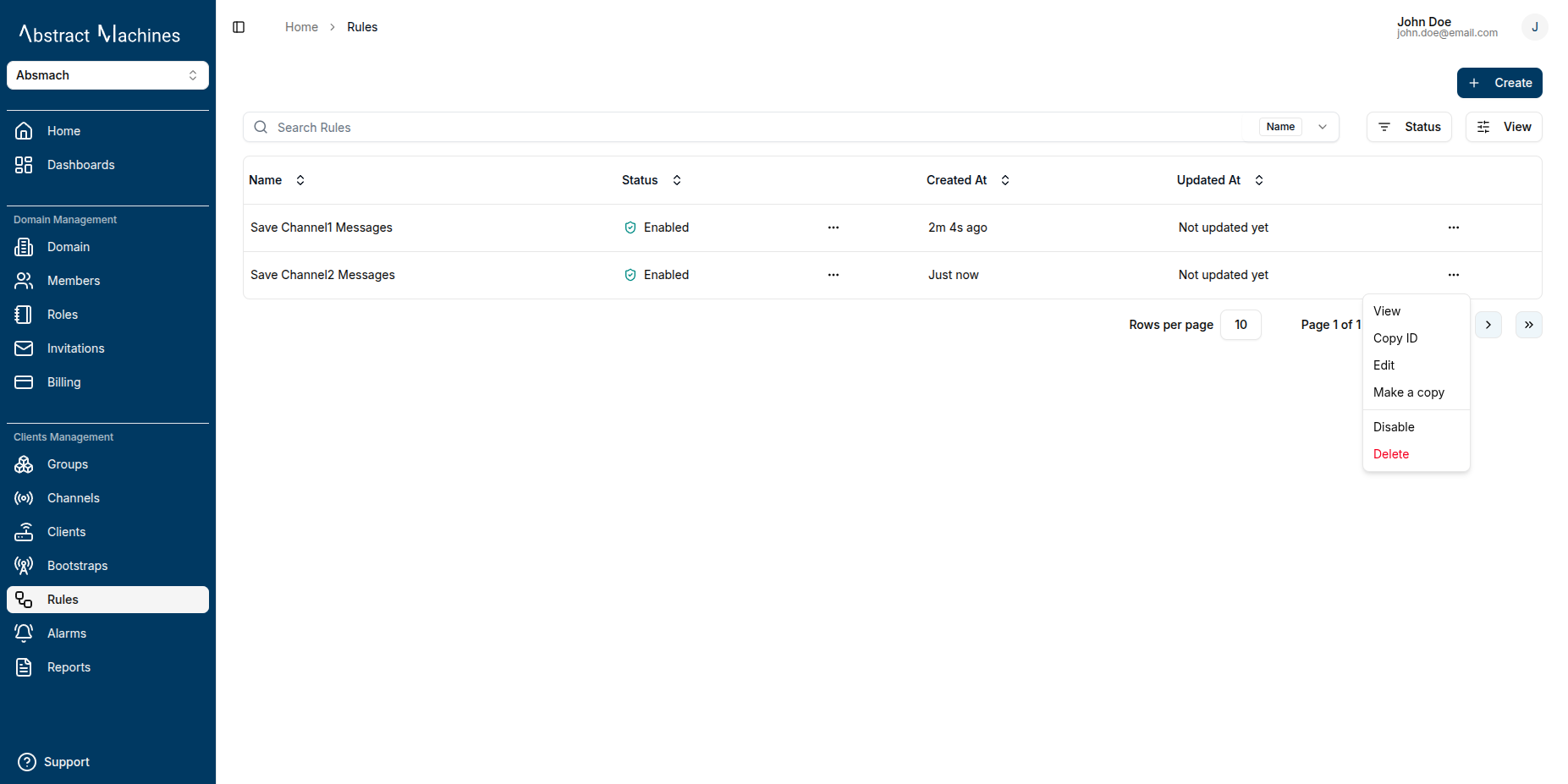

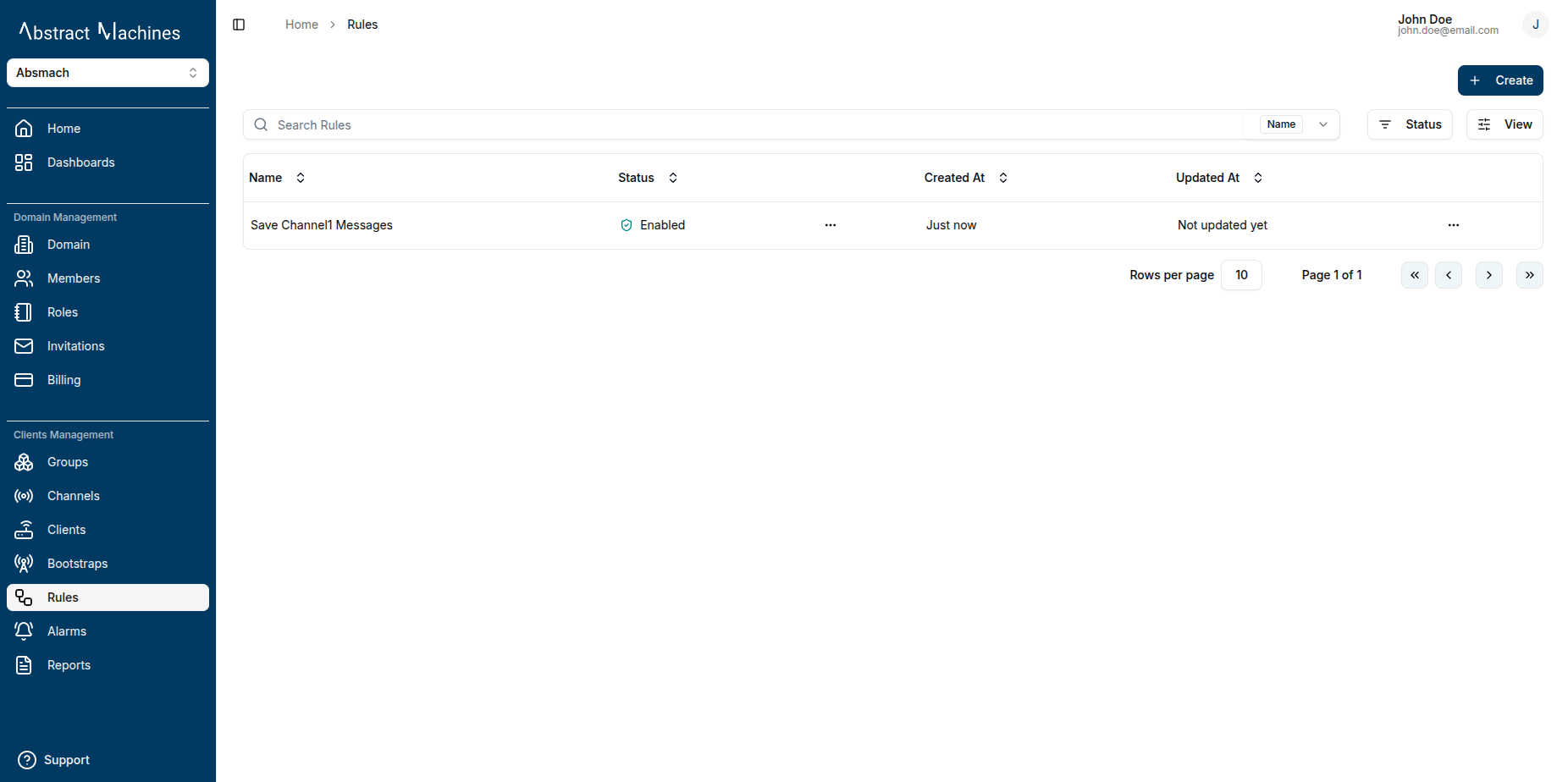

After creation, the rule appears in a list with the following details

1. Rule Name
2. Status (Enabled/Disabled)
3. Creation Date

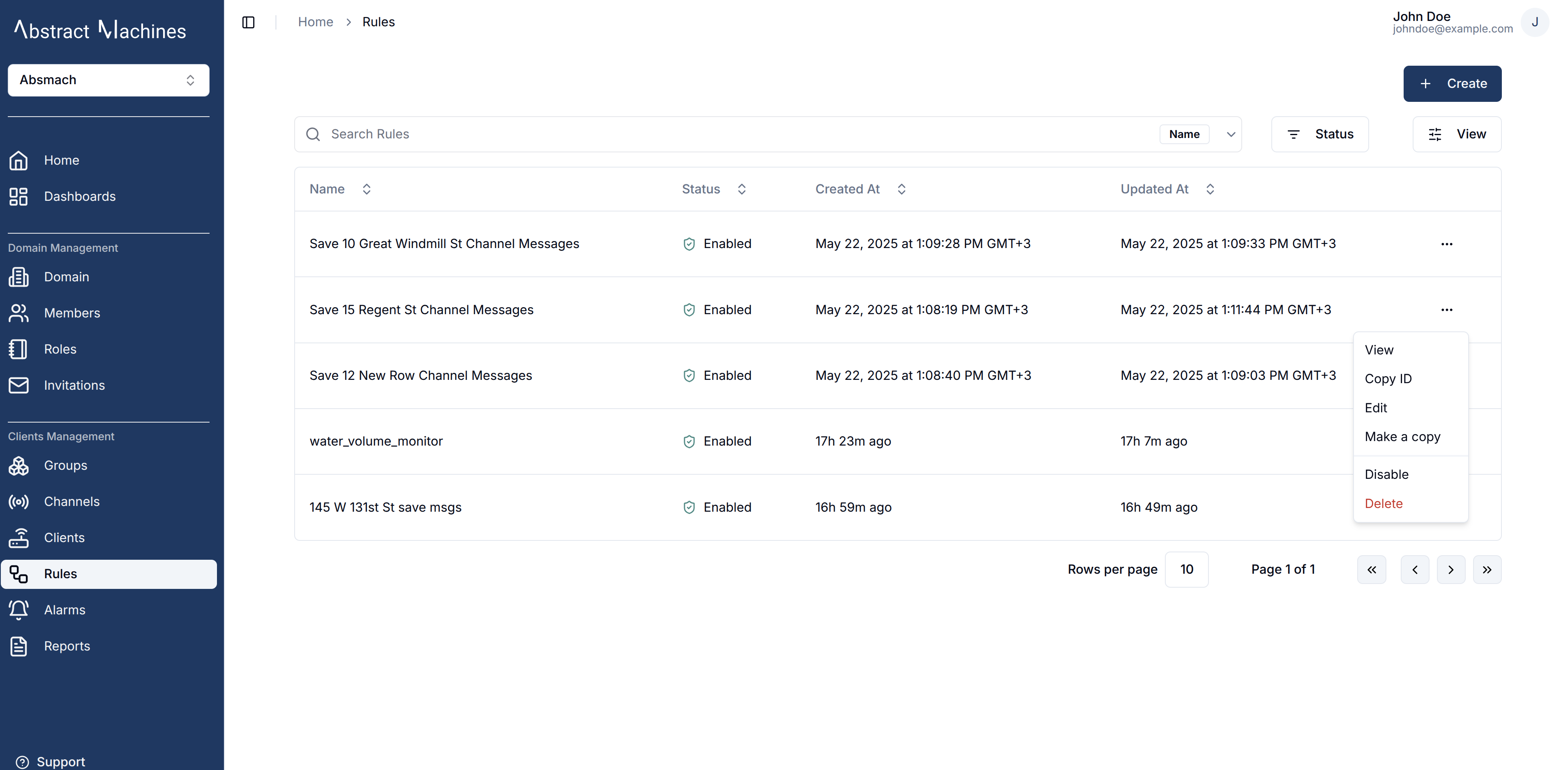

Each rule entry also has quick actions for

• Viewing the rule
• Copying the rule ID
• Enabling/Disabling the rule
• Deleting the rule

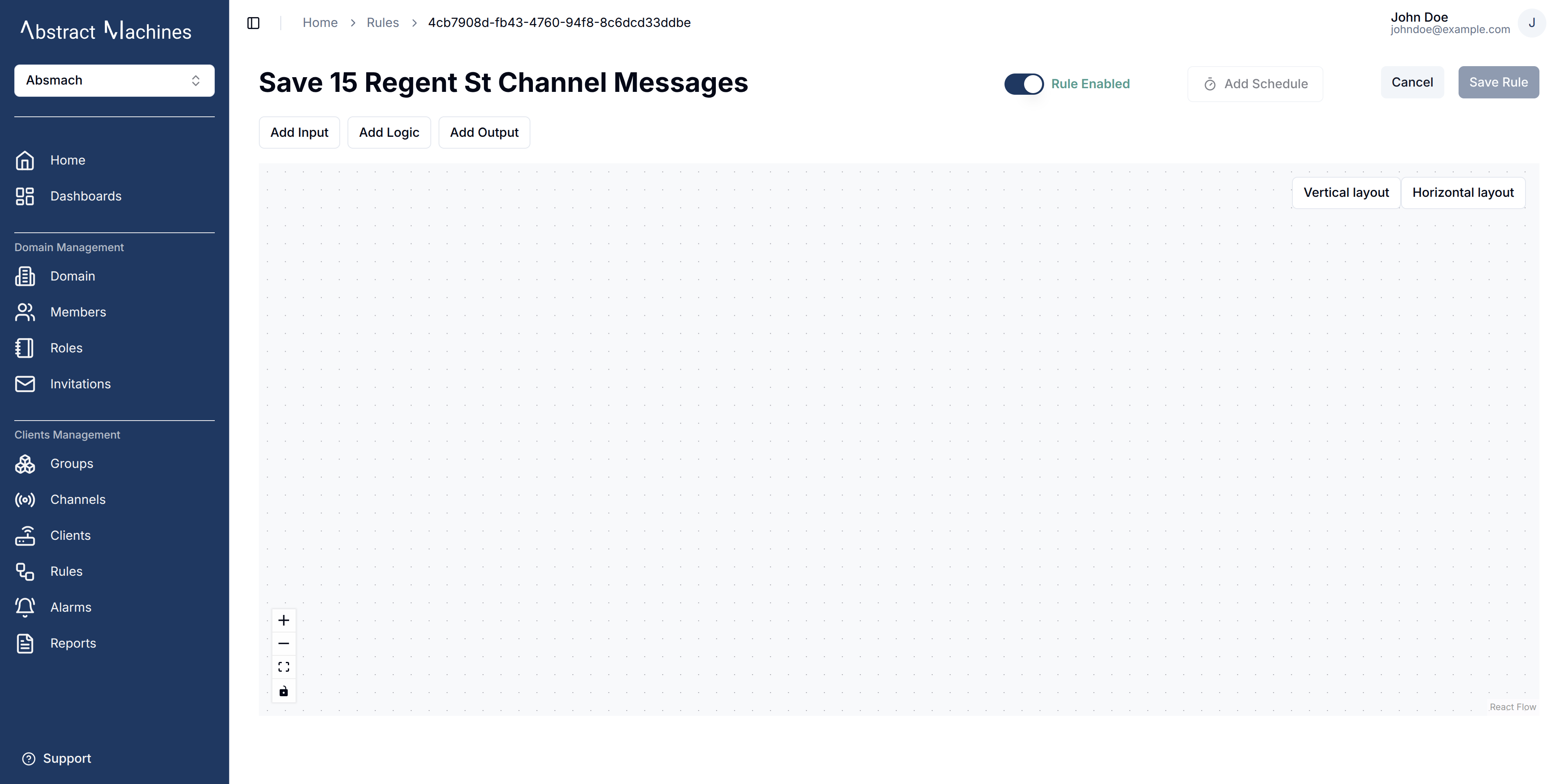

View a Rule

Click the rule name in the rules table to open the rule’s page.

On the rule page, you can configure the following:

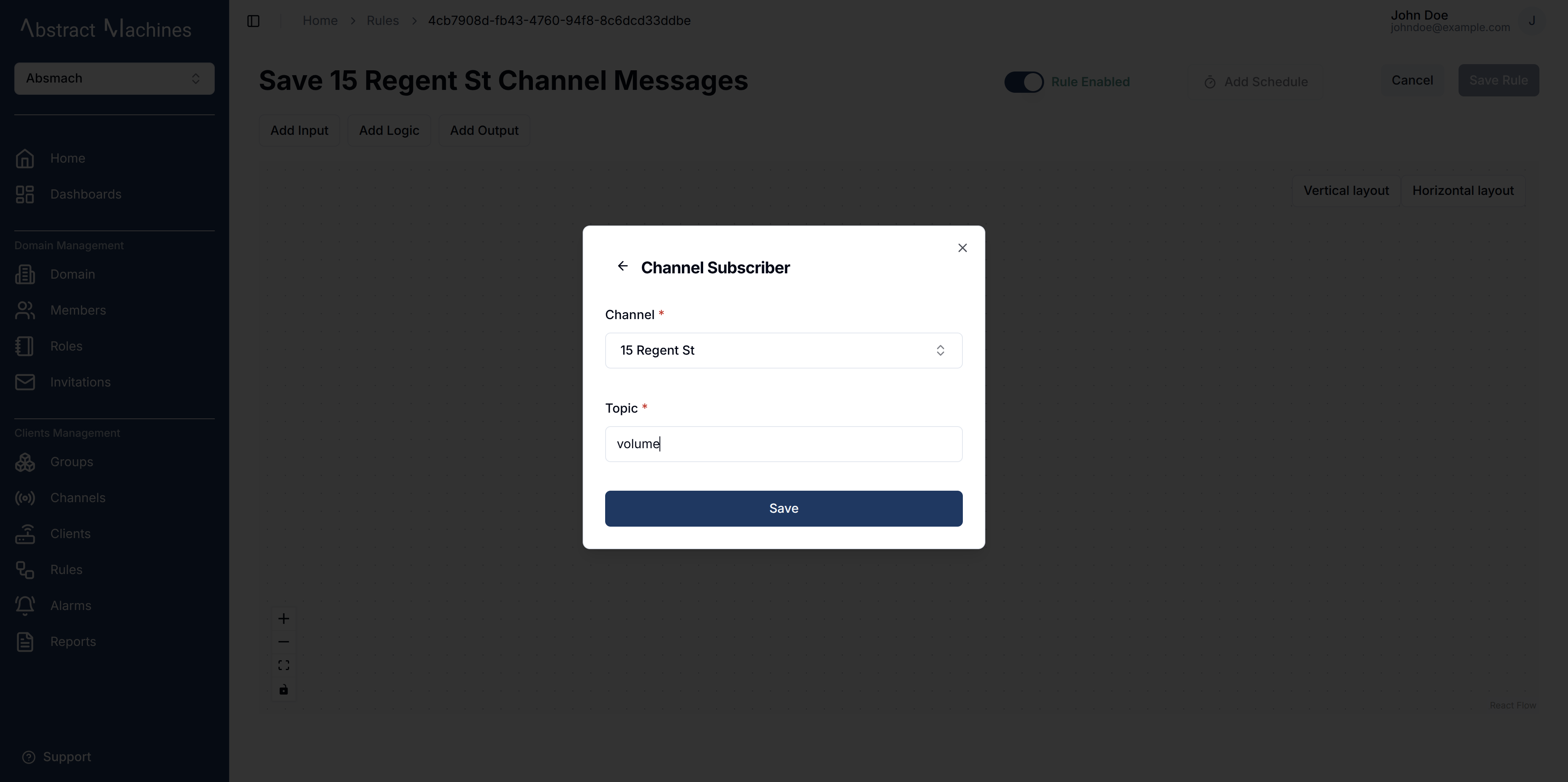

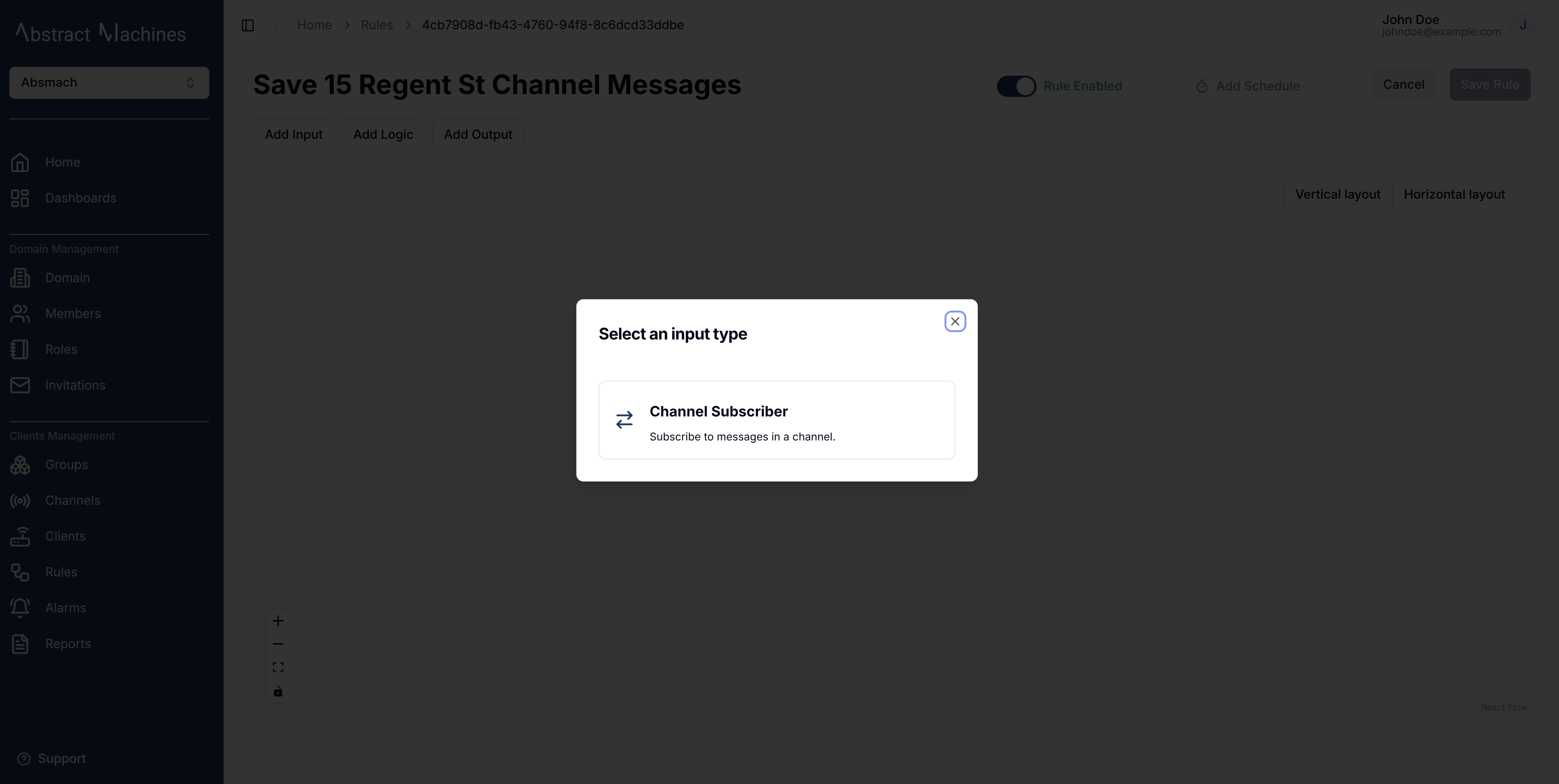

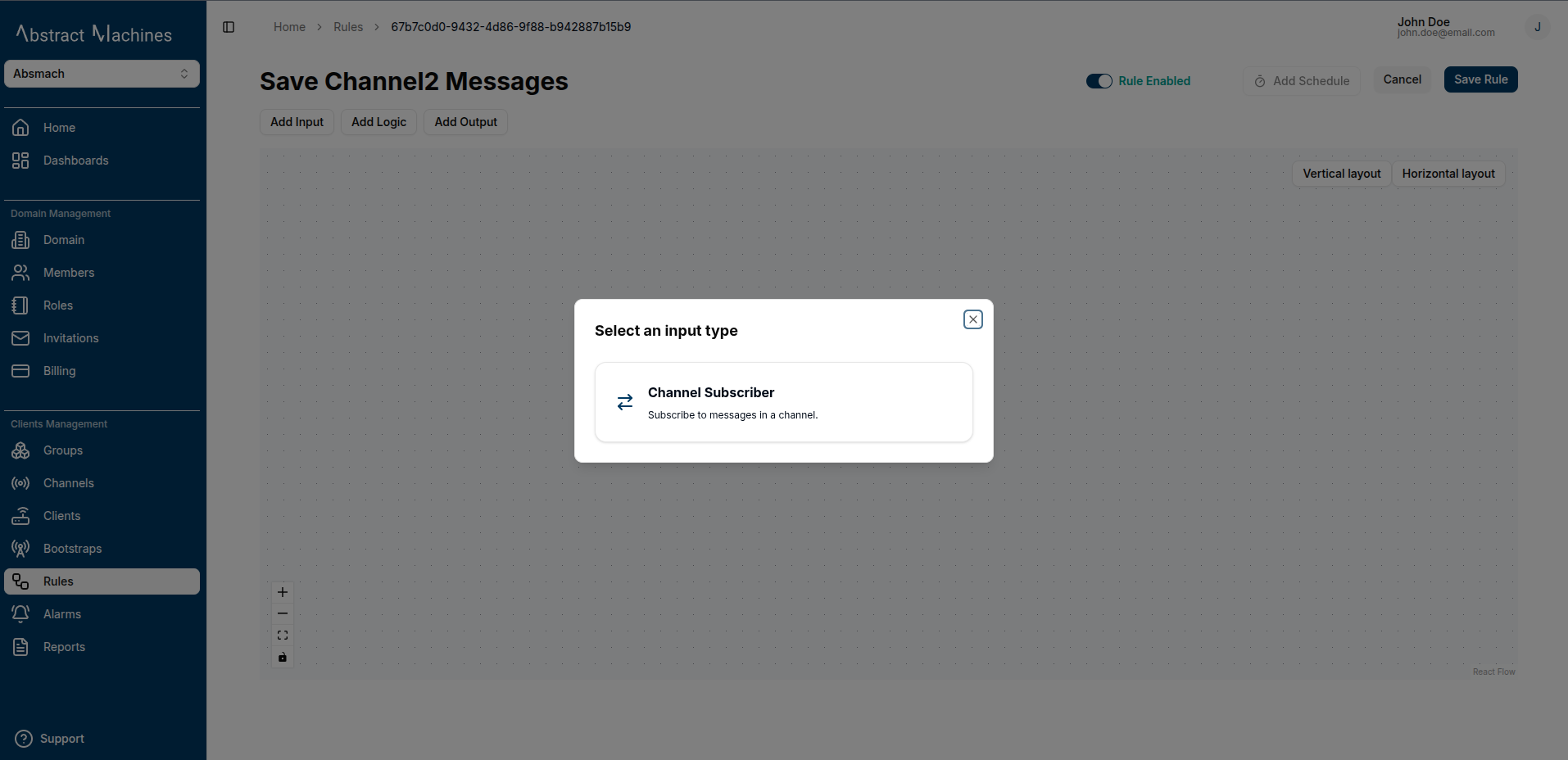

1. Input Node

• Currently, only one input node is supported per rule.

• Select MQTT Subscriber as the input type.

• Choose the channel and topic to subscribe to.

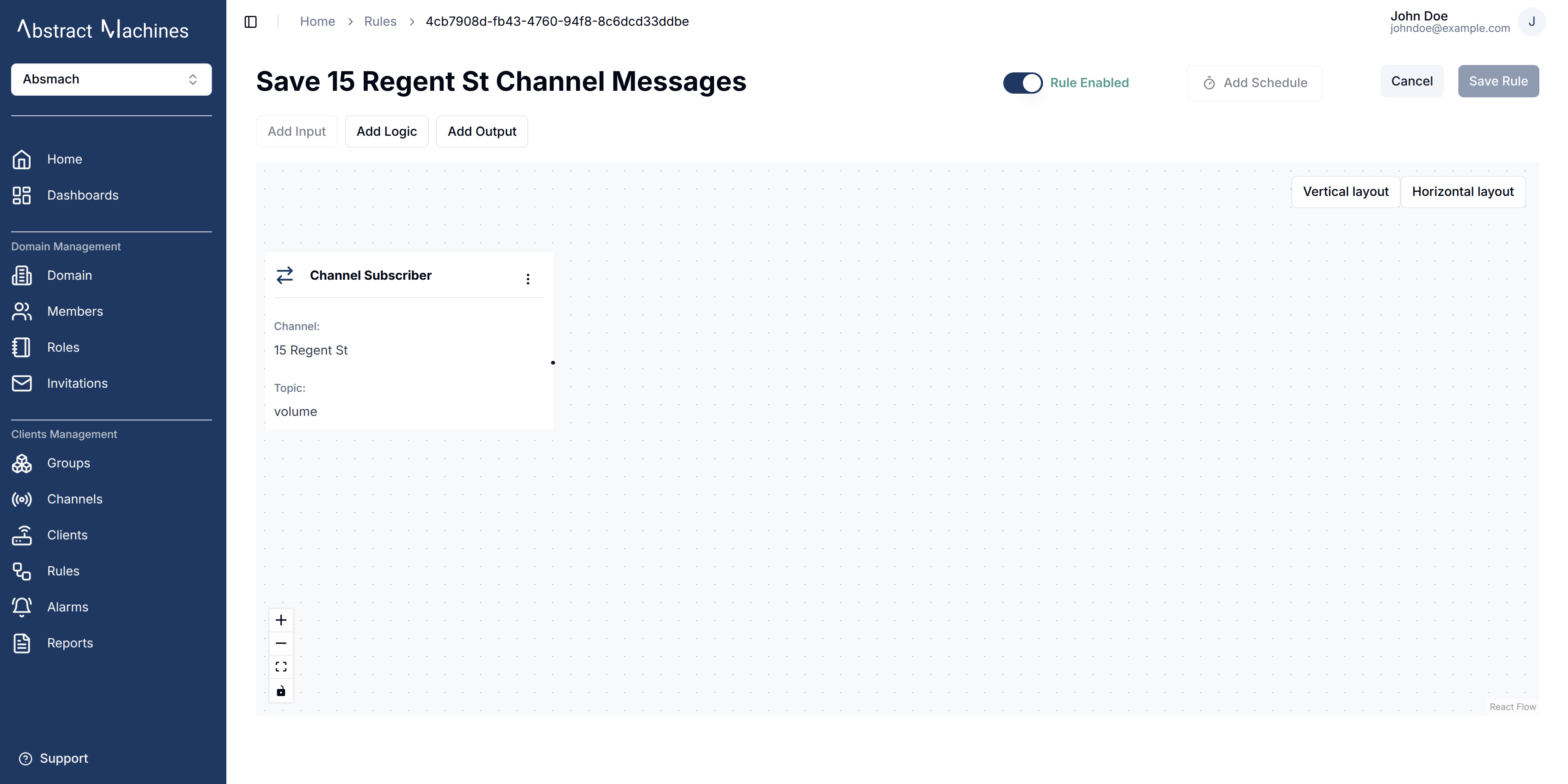

• The input node will appear in the layout.



2. Logic Node

After setting the input, define your rule’s logic using one of three options:

1. Comparison Block
2. Lua Script Editor
3. Go Script Editor

The logic nodes support different message payloads as inputs.
To utilize the message payload, you can use message.<key> in the input. For example if your message is a single SenML message, you can do message.payload.v to get the value.

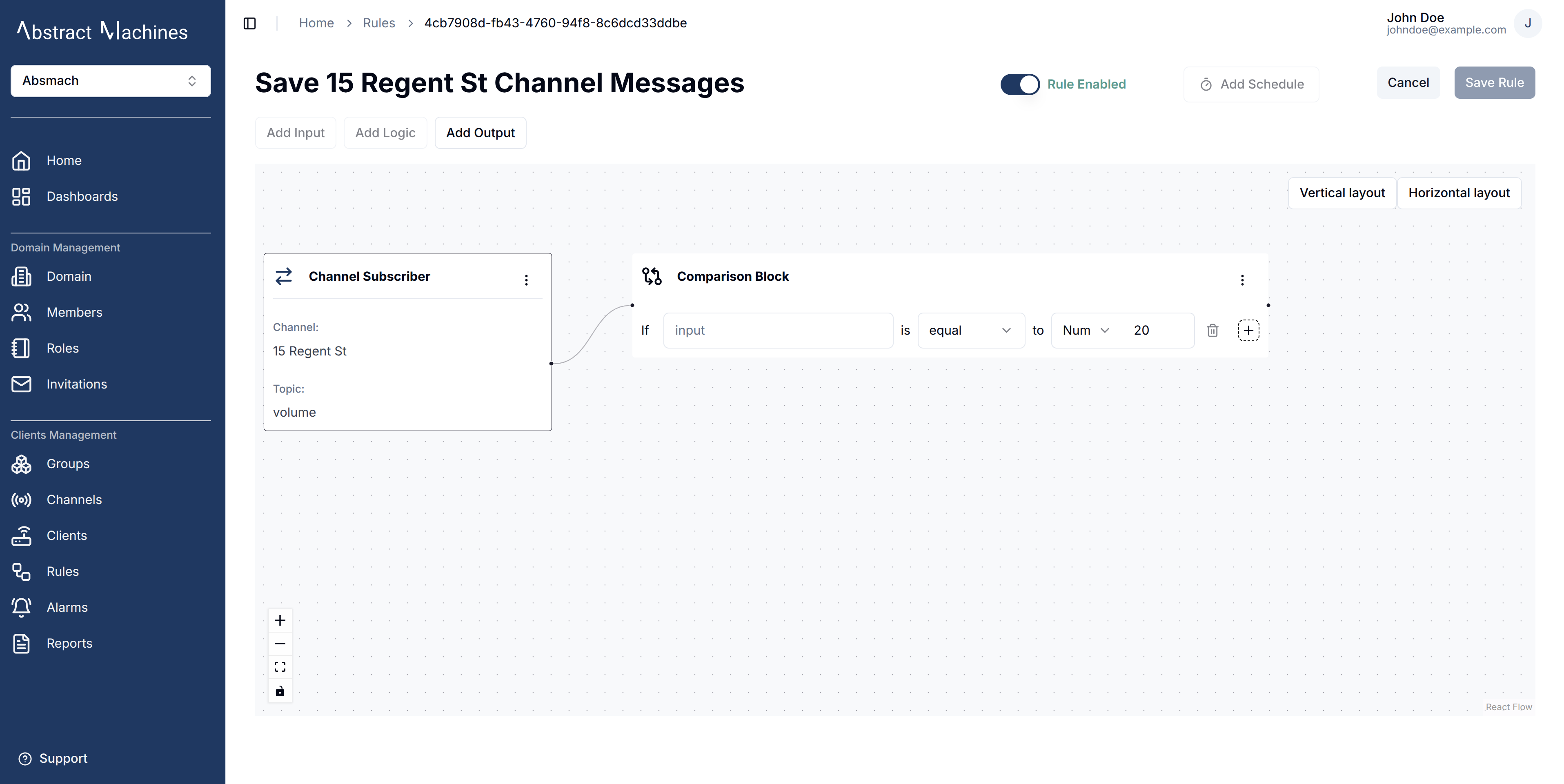

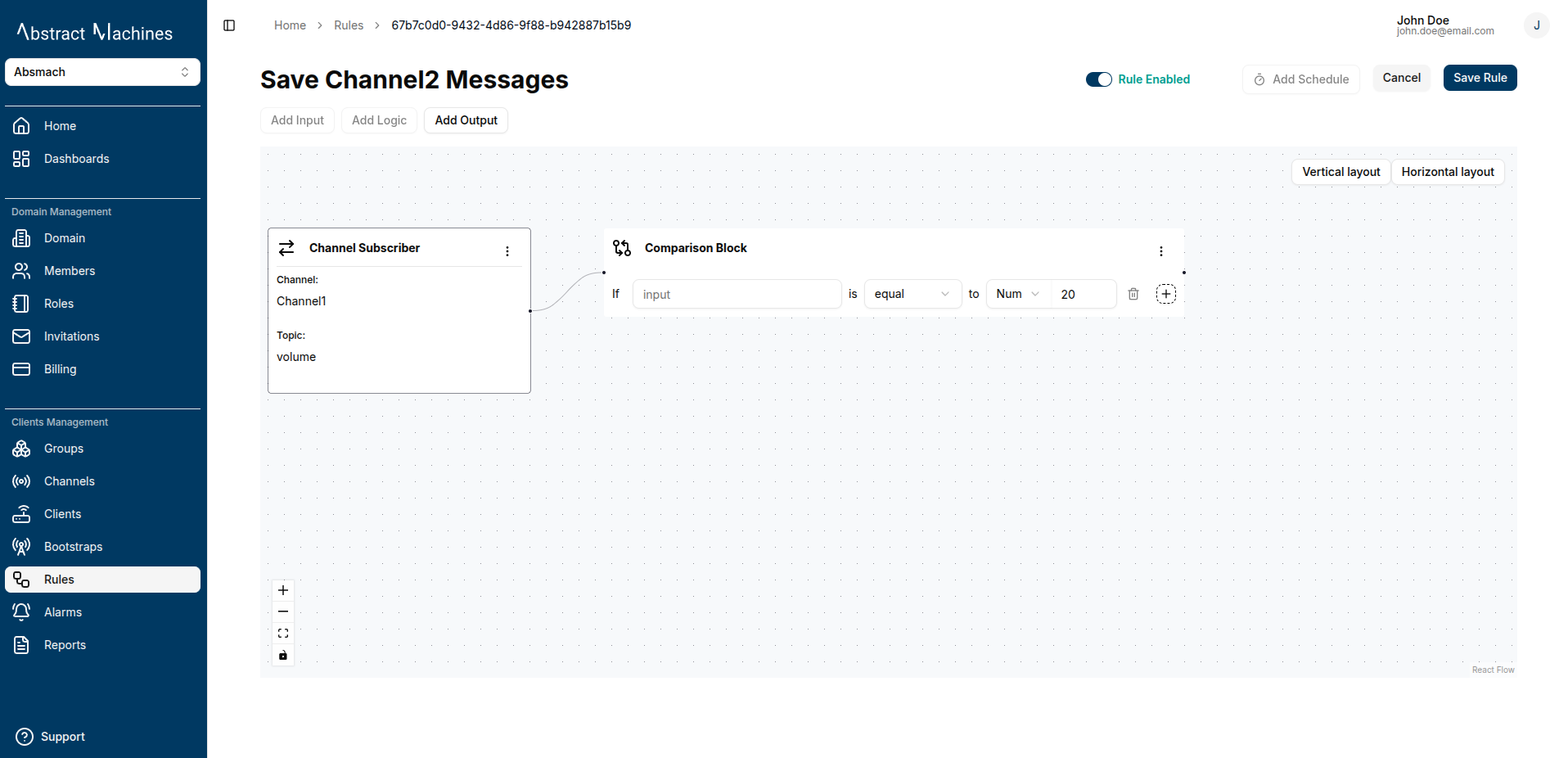

Comparison Block

Use if, and and or conditions to evaluate message payloads:

Supported Payload Structures:

• Nested objects: message.<key>.<key> (e.g., message.payload.sensor.temperature).
• SenML fields: v (numeric), vs (string), vb (boolean), vd (data), s (sum).

Multiple Conditions:
Chain conditions with and / or:

Script Editors

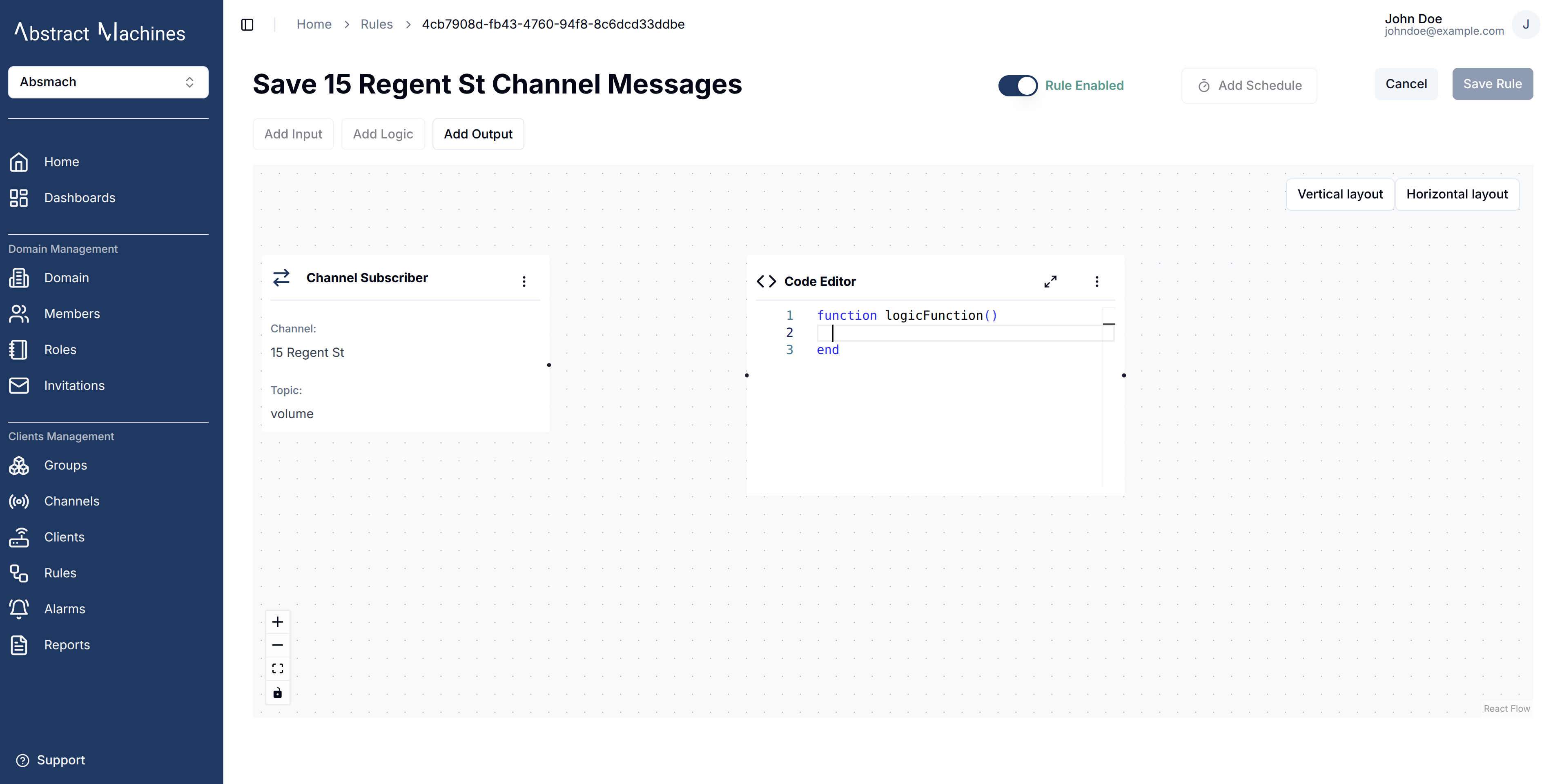

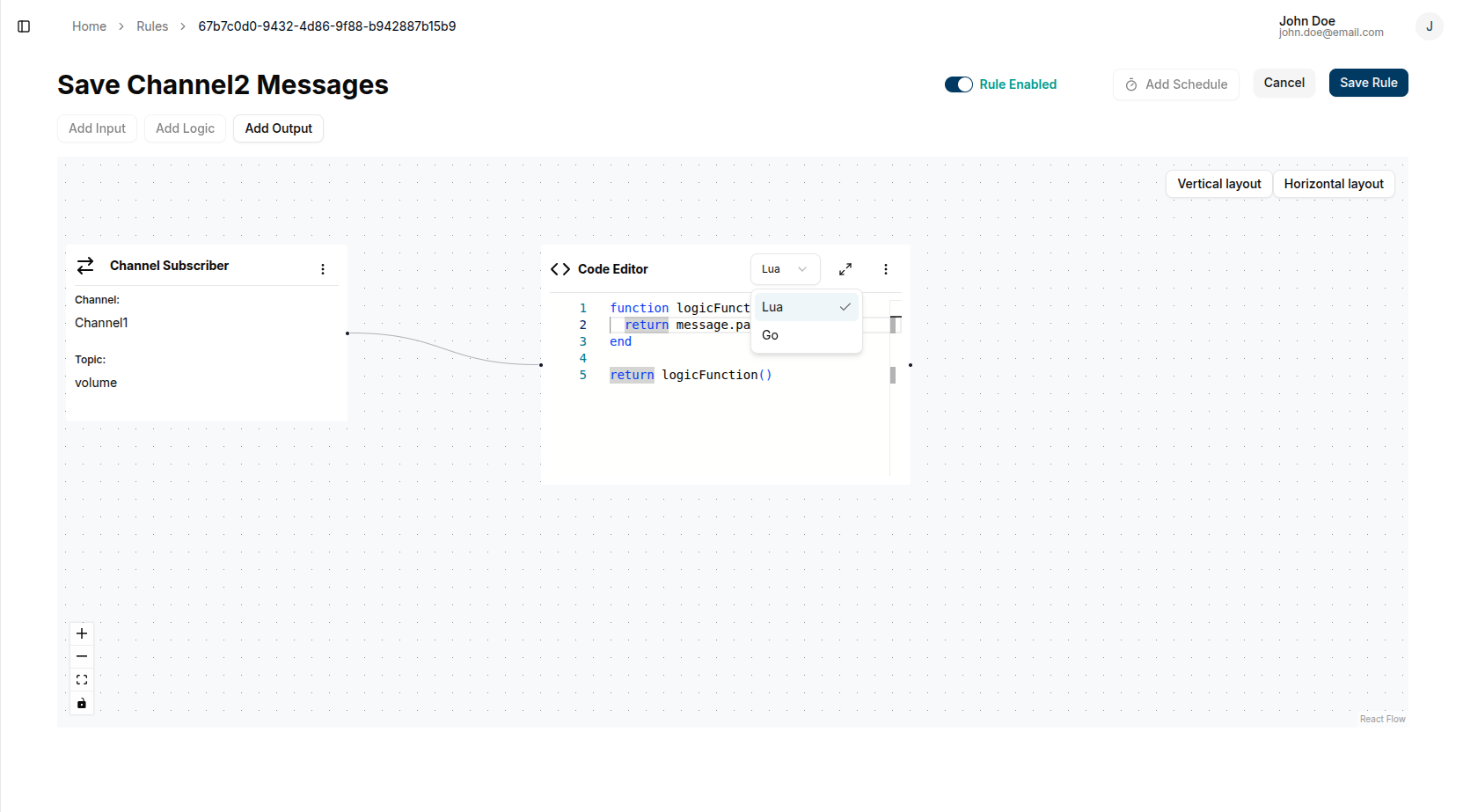

The script editor allows you to toggle between Lua and Go modes using the selector at the top of the editor:

Toggle between:

• Lua script mode (default)
• Go script mode

Lua Script Editor

Write custom logic in Lua. Wrap code in logicFunction() and return a primitive or table:

Example:

Return an object (e.g., converted temperature)

function logicFunction()
  local converted_temp = (message.payload.v * 1.8 + 32)
  return {n = "Temp_fahrenheit", v = converted_temp, u = "°F", }
end
return logicFunction()

Returns a primitive

function logicFunction()
  return (message.payload.v * 1.8 + 32)
end
return logicFunction()

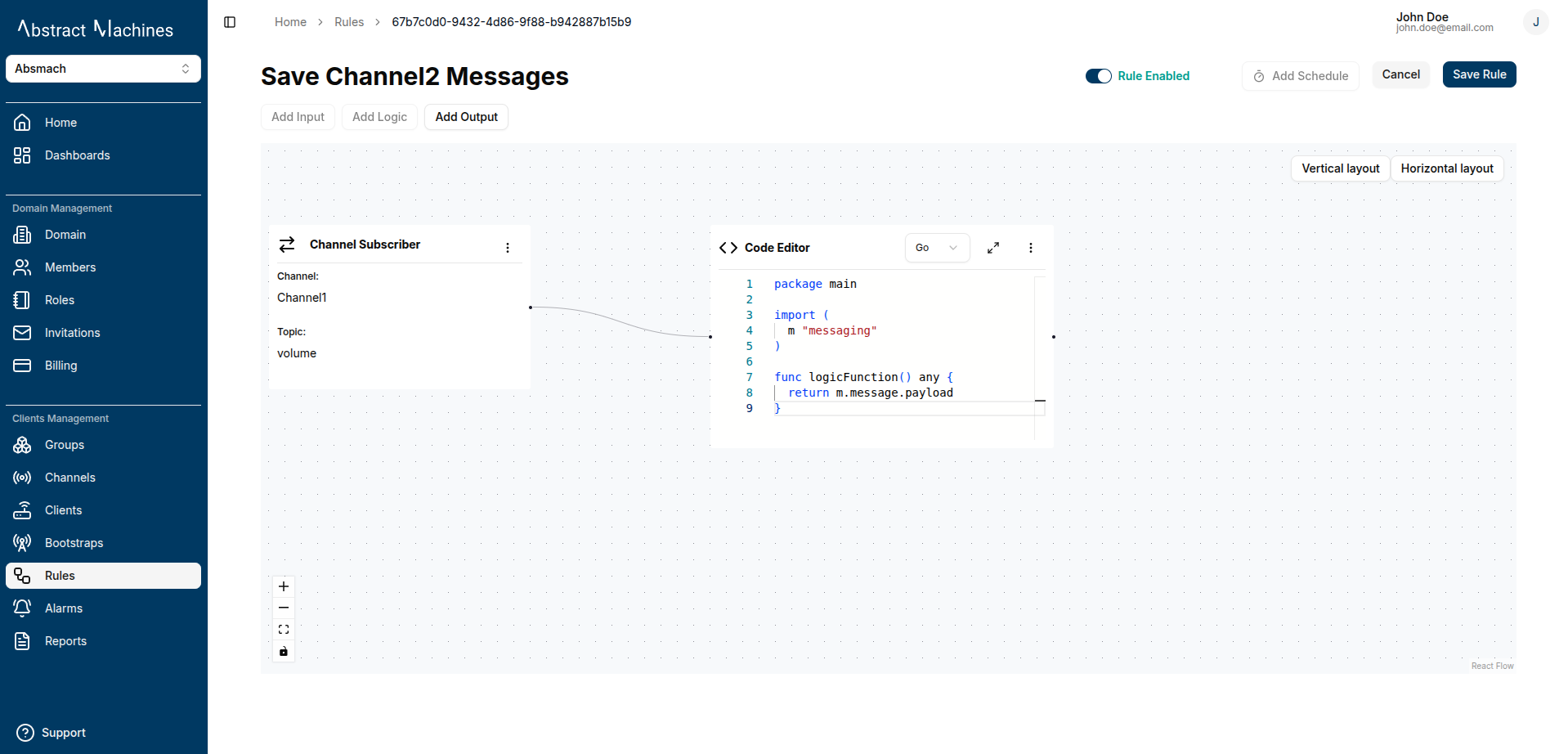

Go Script Editor

Write Go-based logic for advanced use cases. Return a value or struct:

Example:

  package main

  import (
      m "messaging"
  )
  func logicFunction() any {
      return m.message.Payload
  }

Note:
Output nodes only trigger if the script returns a truthy value.
If the logic node returns false, the connected output nodes will not be executed.
This allows for conditional flows, ensuring actions such as MQTT publishing, email alerts, or database inserts only occur when the specified logic conditions are satisfied.

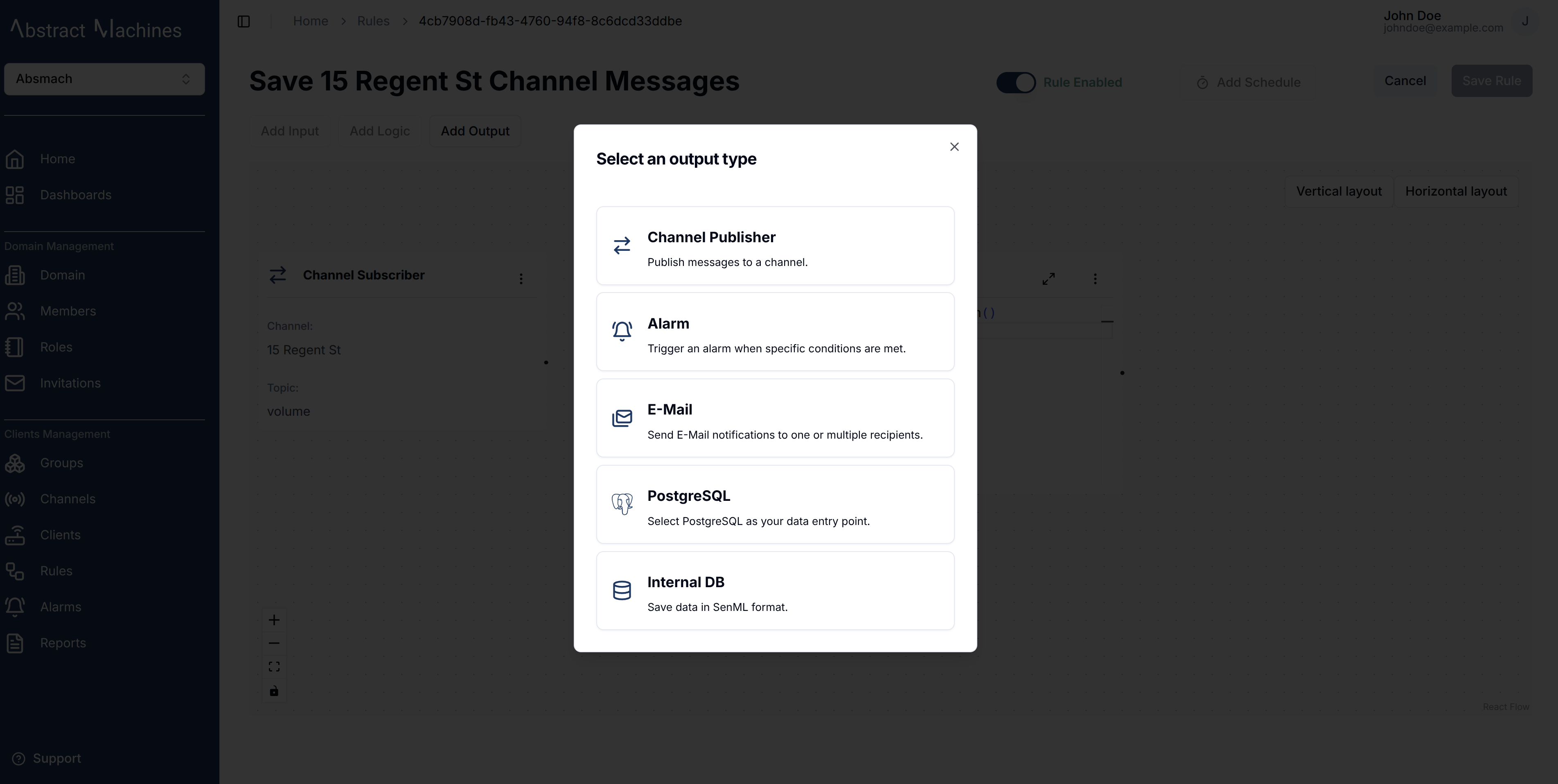

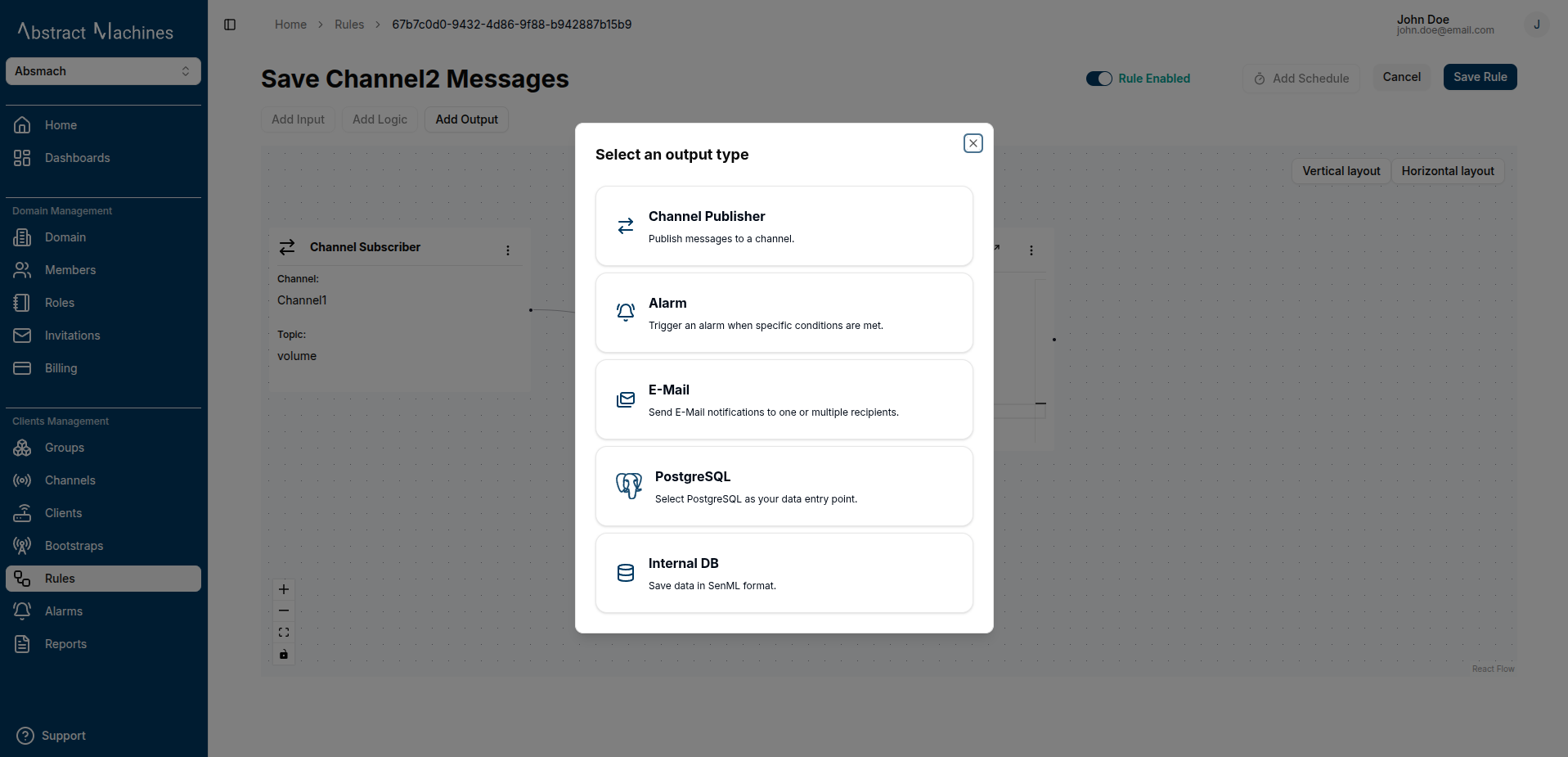

3. Output Node

You can add one or more output nodes. The following nodes are supported:

1. Channel publisher
2. Email
3. PostgreSQL
4. Alarm
5. Magistrala DB

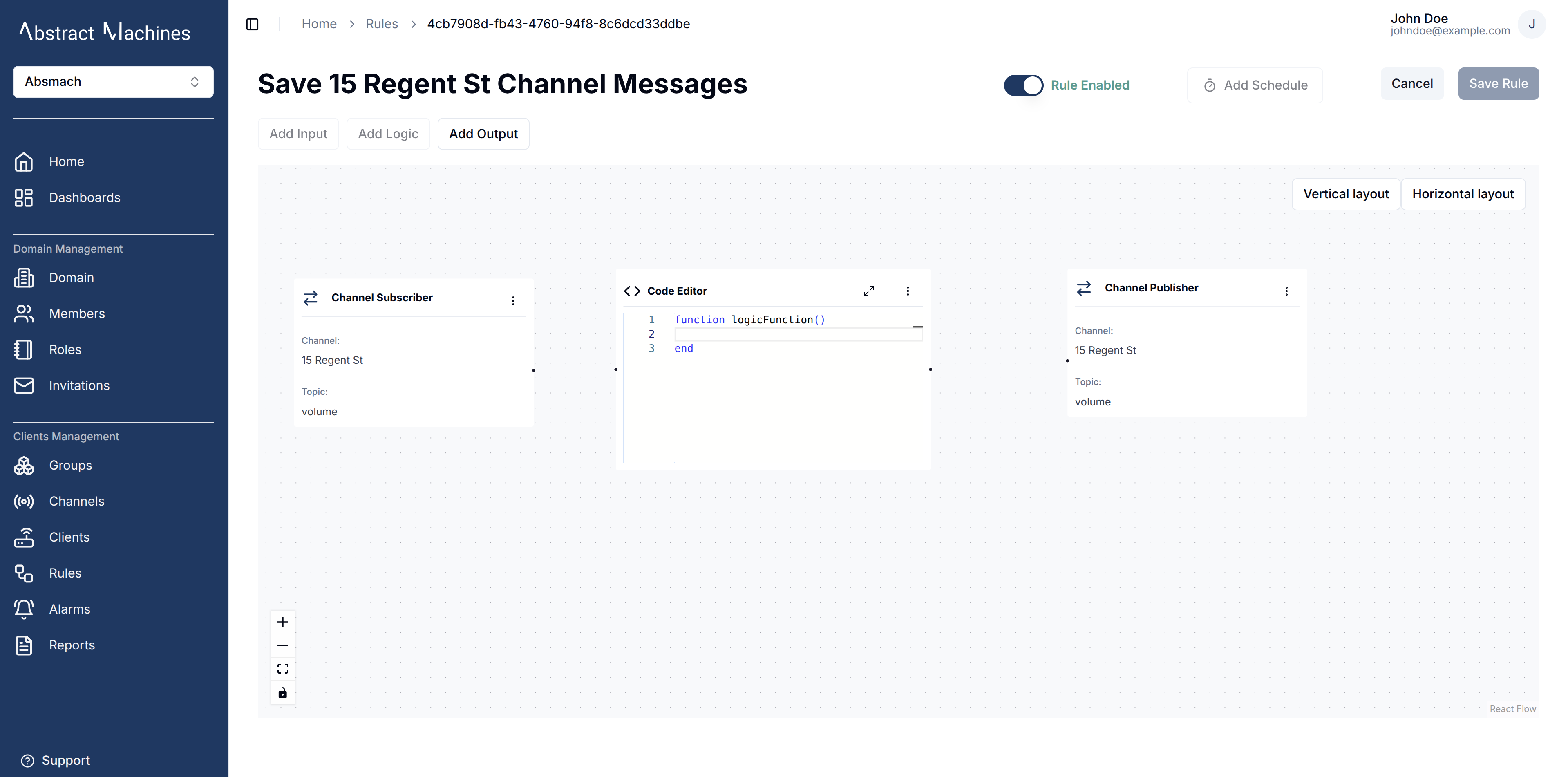

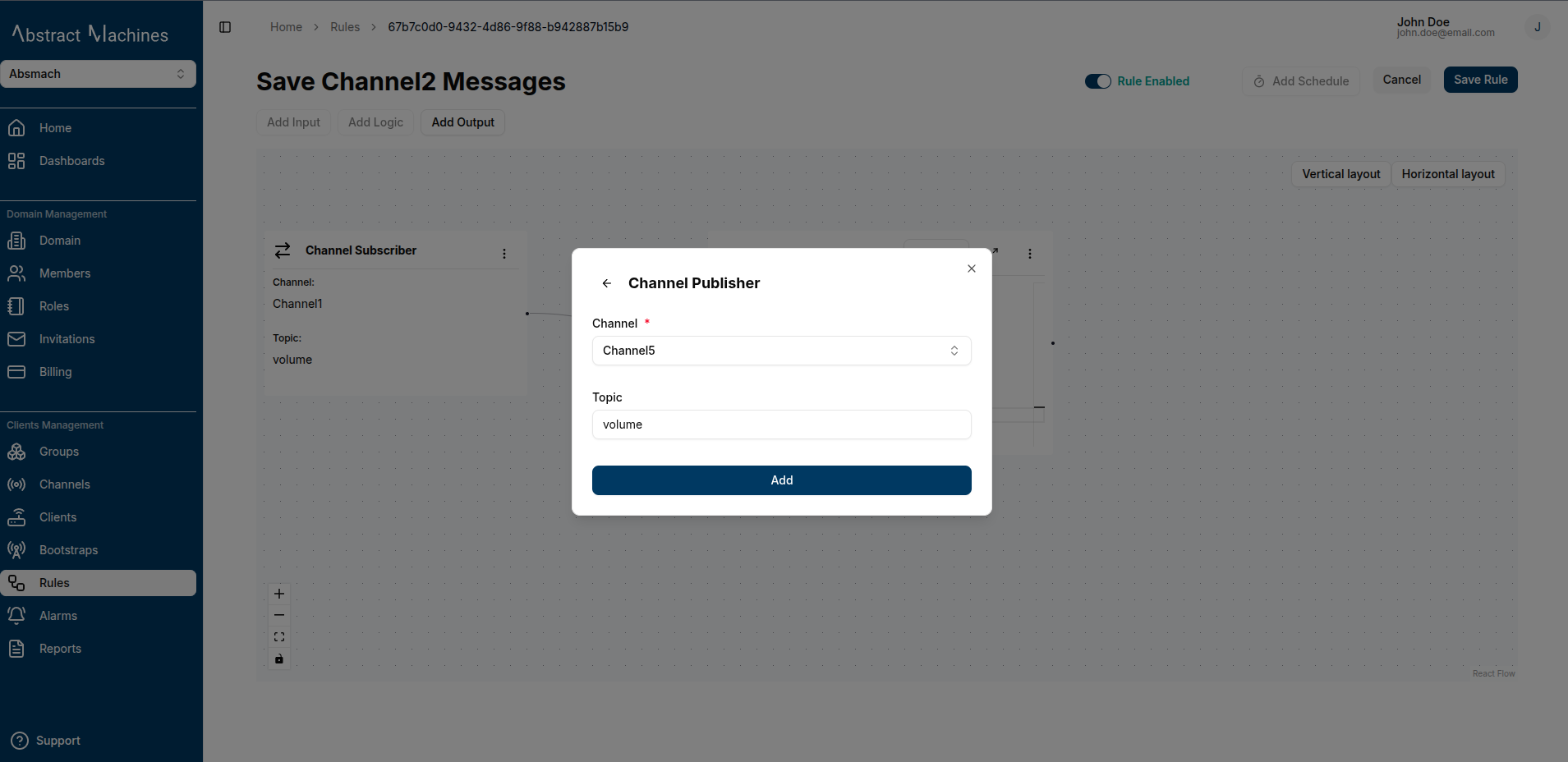

Channel Publisher

Enables you to specify the output channel and topic. The result of the logic node is published to this topic.

Select the Channel Publisher as the output node and enter the channel and topic.

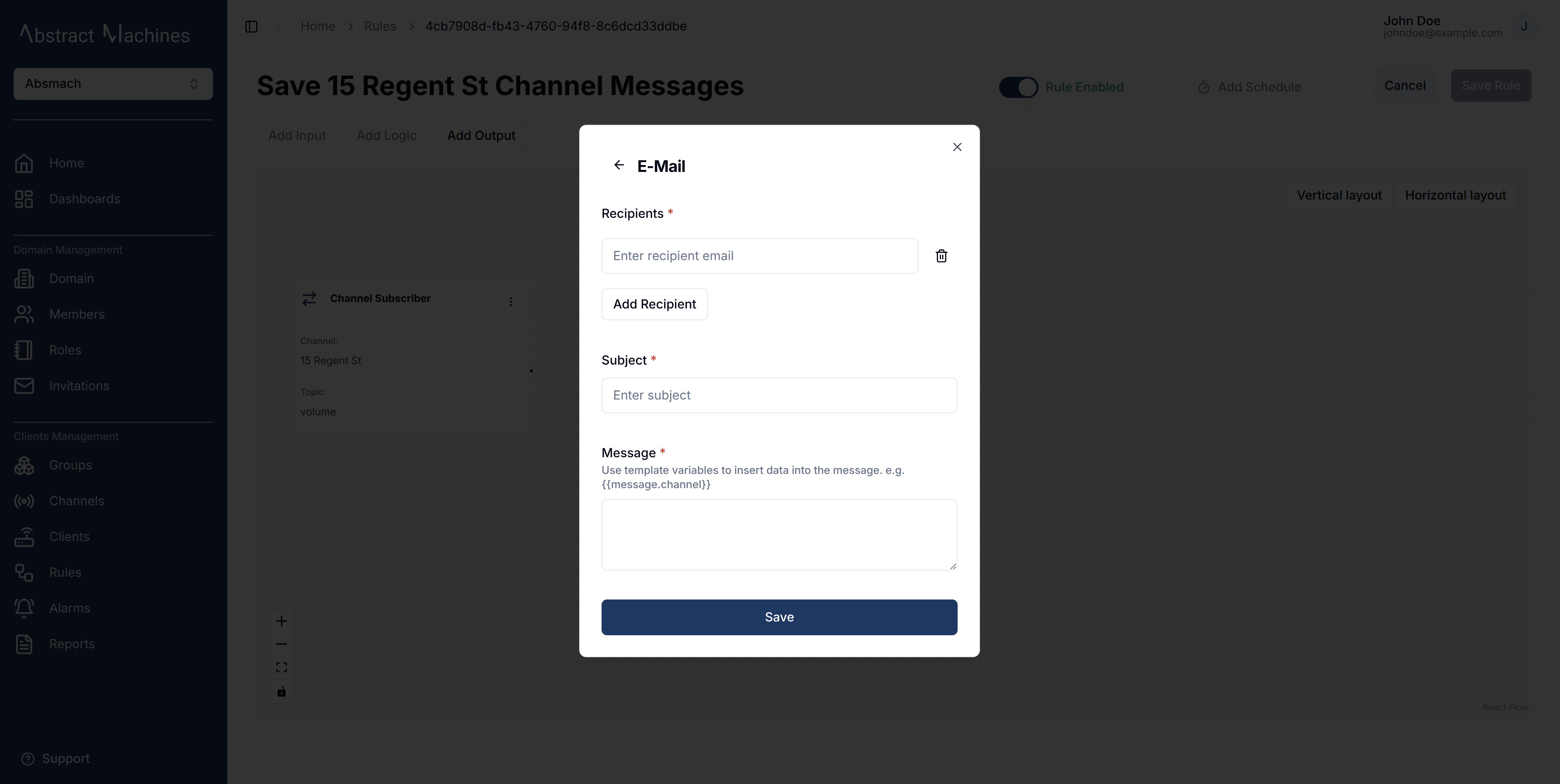

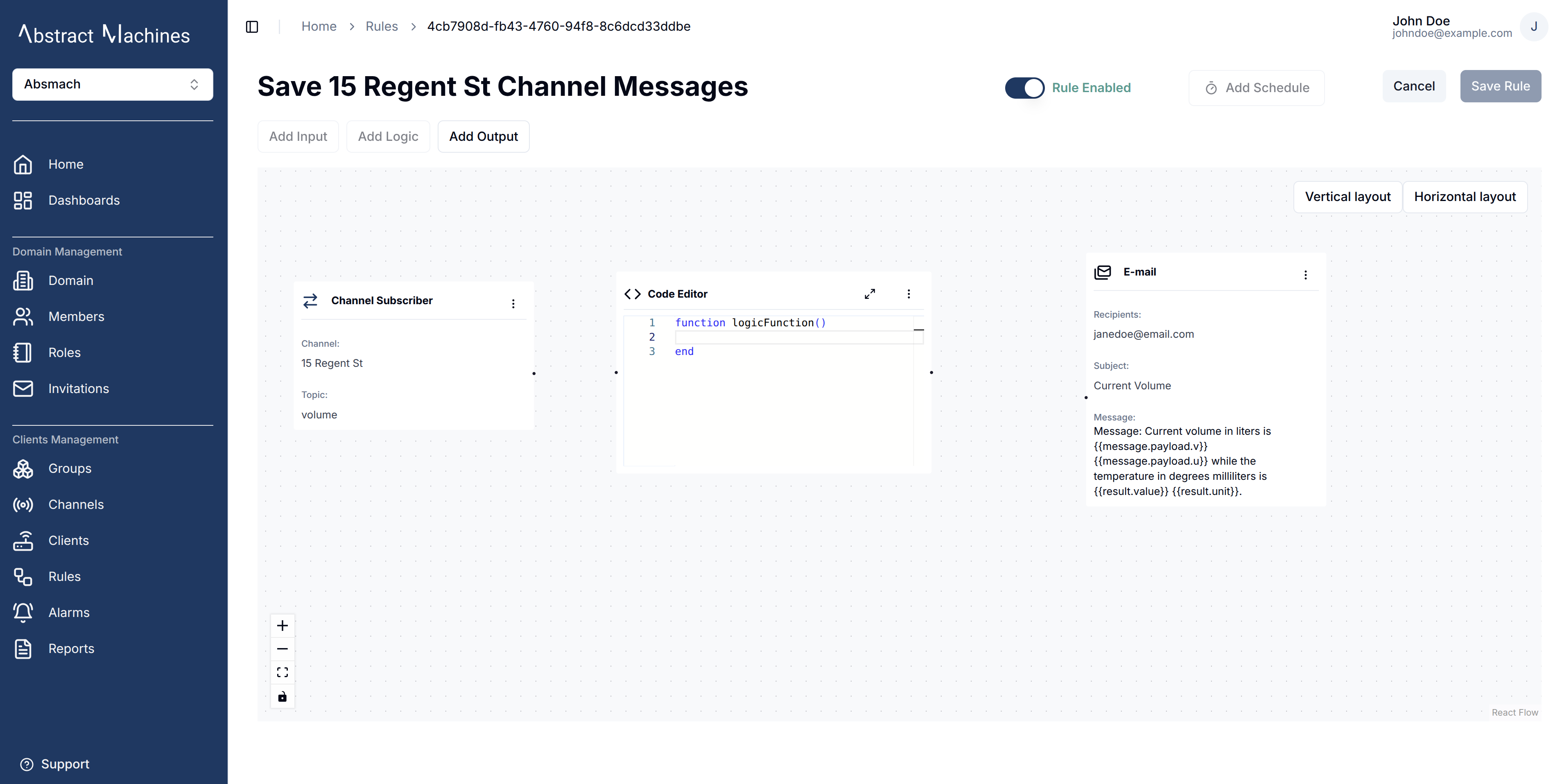

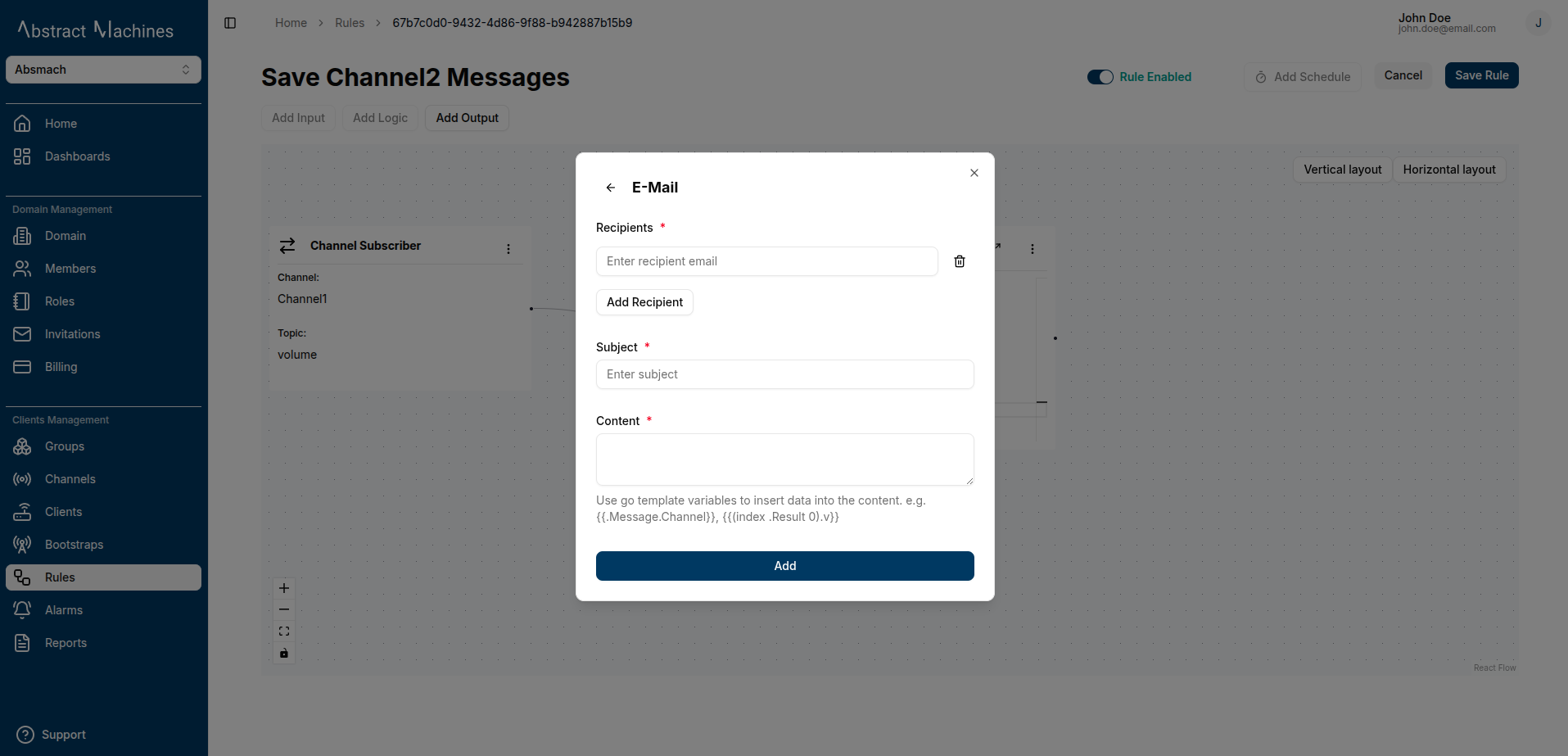

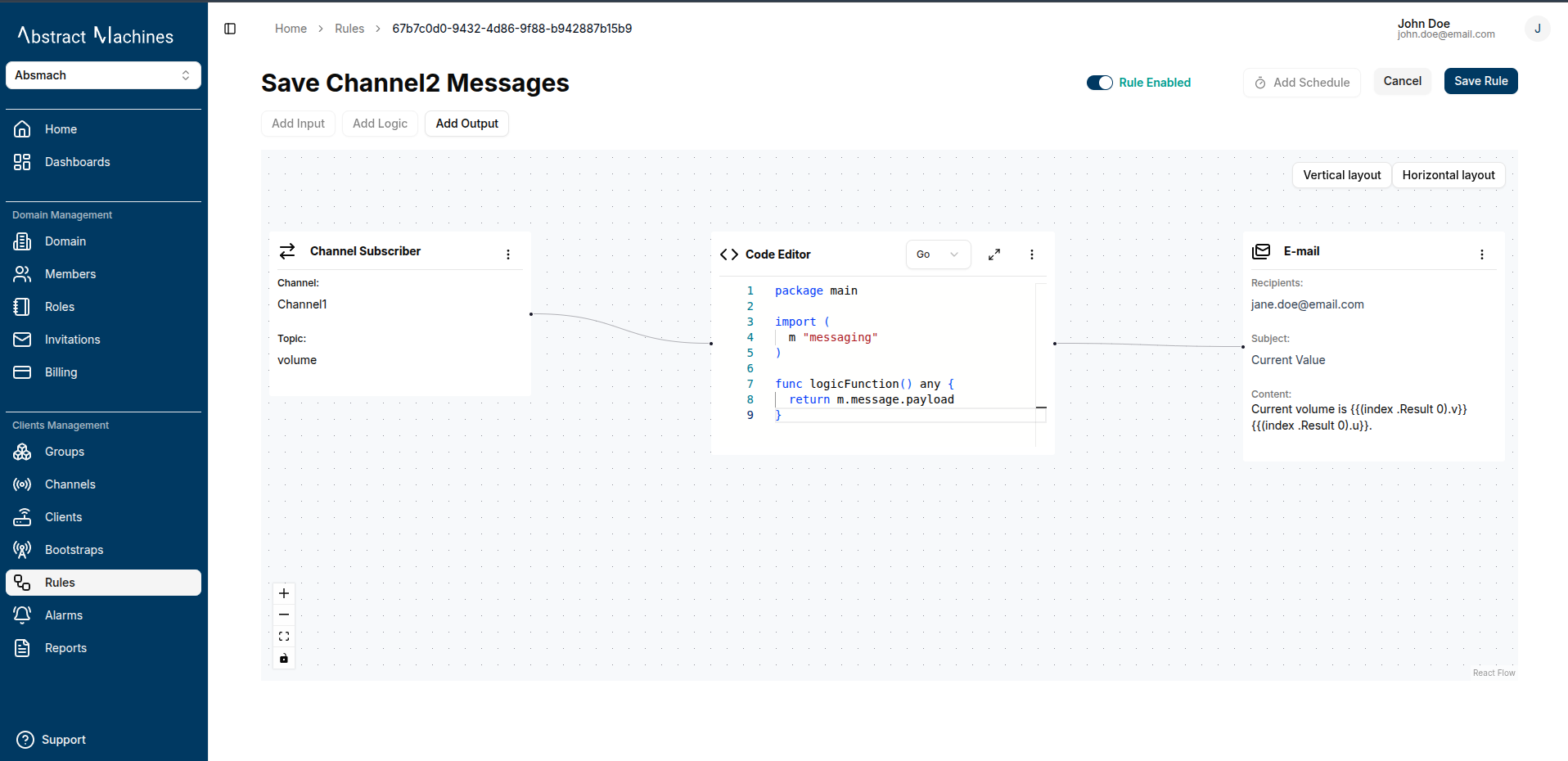

Email

Send results via email with templated fields:

Subject

Current Volume

• Use dynamic template fields:
  • {{.Result}} — the entire result from logic block
  • {{.Result.<key>}} — a specific field from the result
  • {{.Message.<key>}} — a field from the original message

Content

 Current volume is {{(index .Result 0).v}} {{(index .Result 0).u}}.

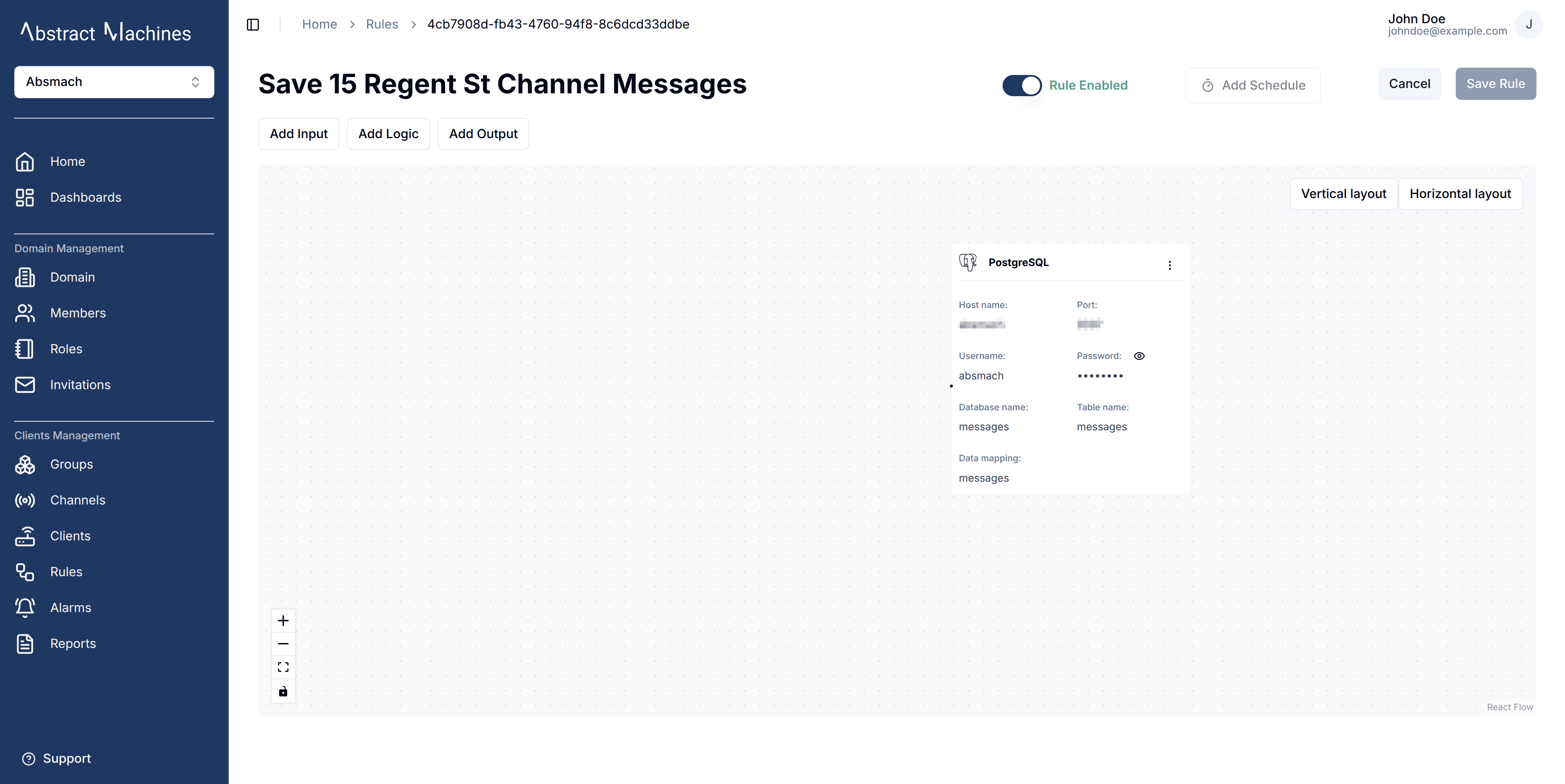

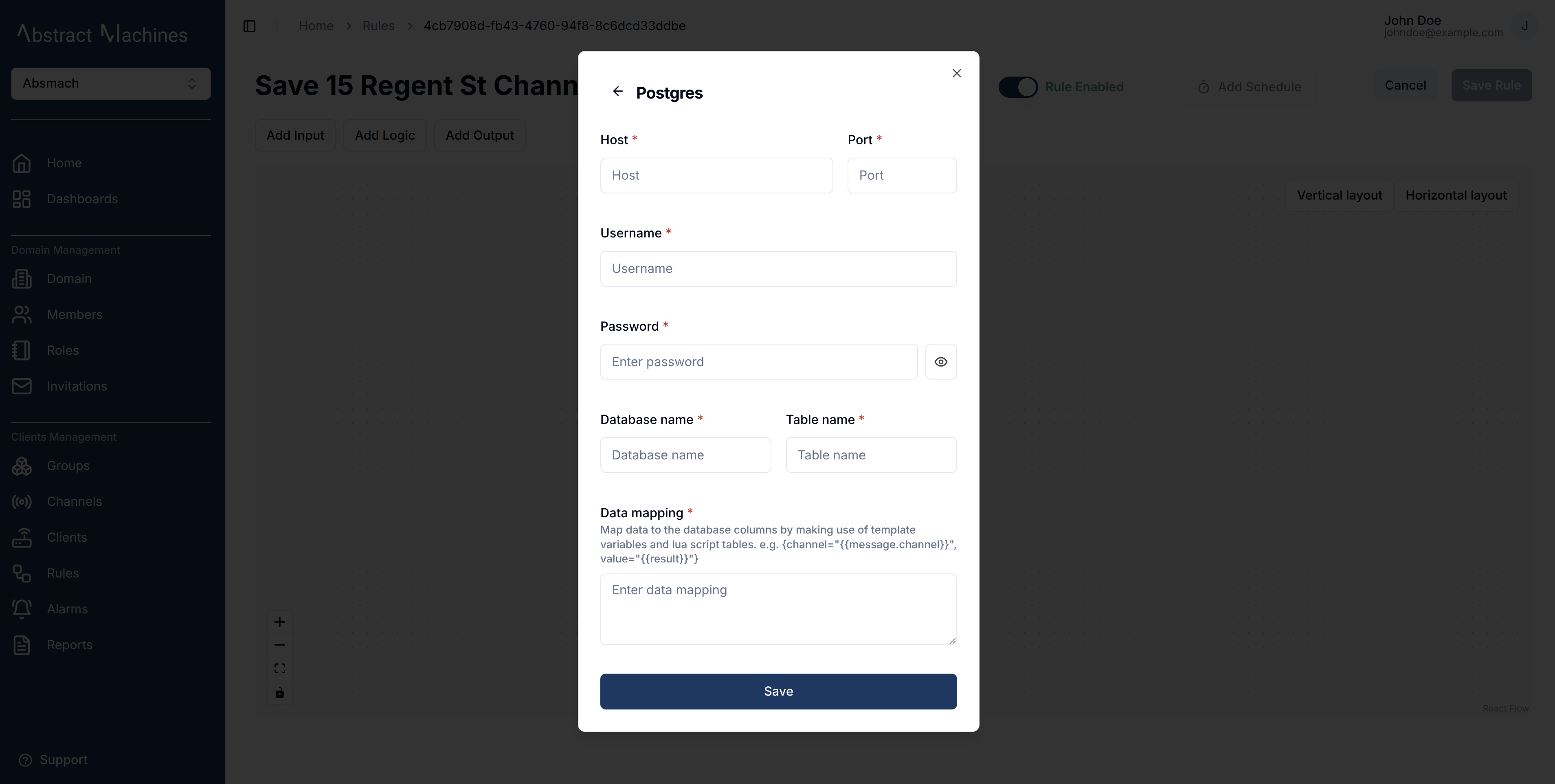

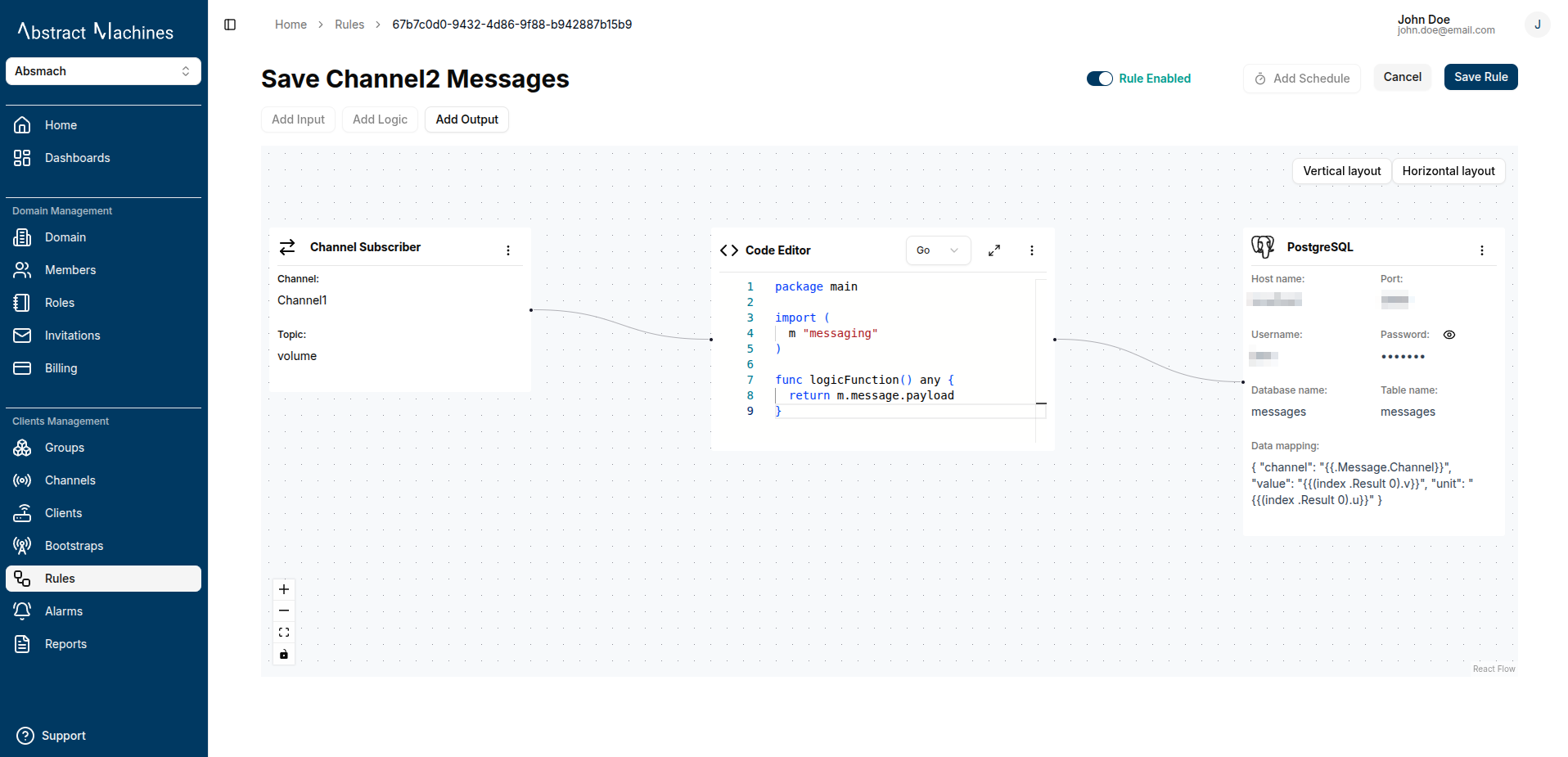

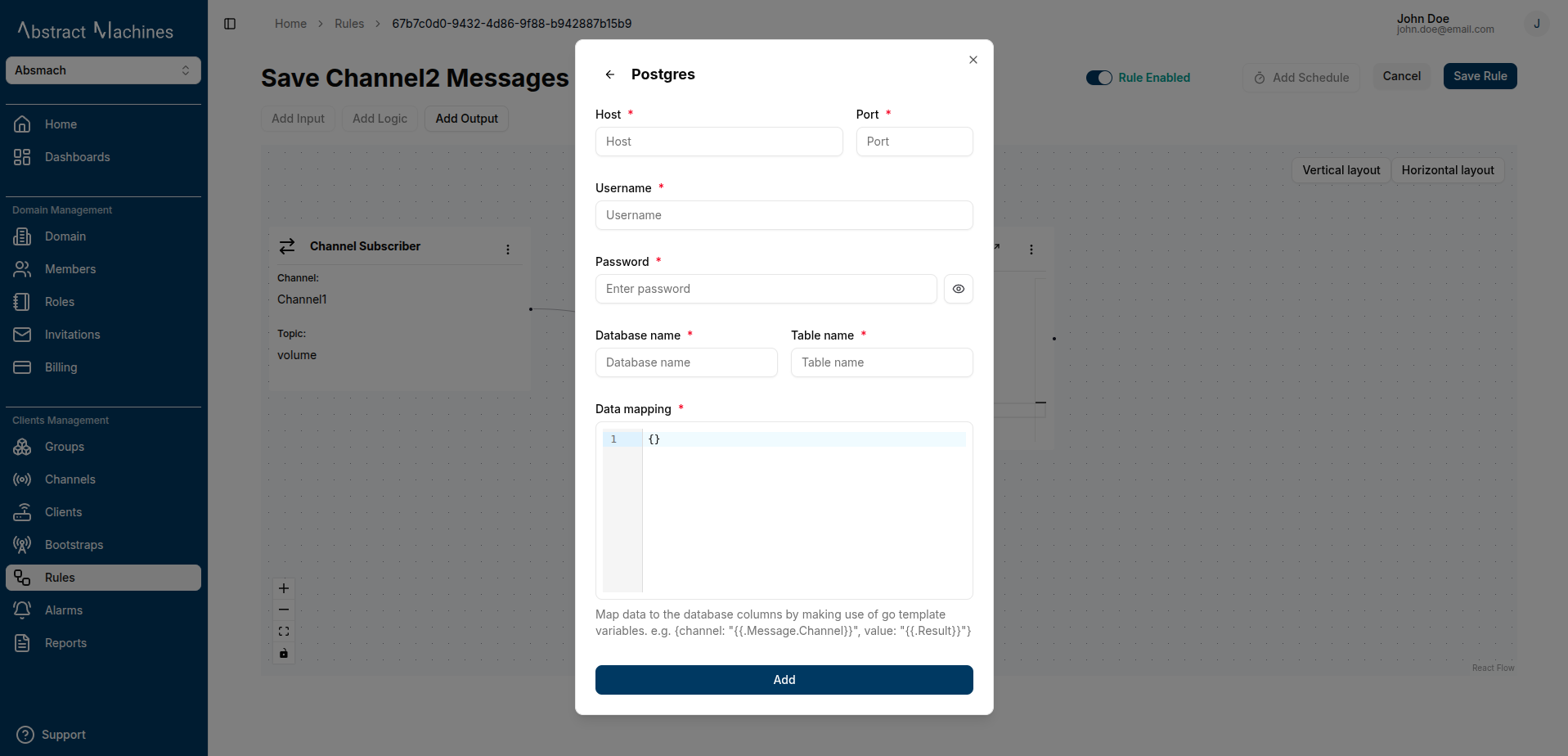

PostgreSQL

Store message processing results to your PostgreSQL database. Select the PostgreSQL output node option and enter the following information:

• Host
• Port
• Username
• Password
• Database name
• Table name
• Map data to table columns using templates

Go template mapping

{
  "channel": "{{.Message.Channel}}",
  "value":   "{{(index .Result 0).v}}",
  "unit":    "{{(index .Result 0).u}}"
}

Internal DB

To be able to store messages in the internal Magistrala DB, you need to create a rule that processes the results. More information about this is in the Store Messages section.

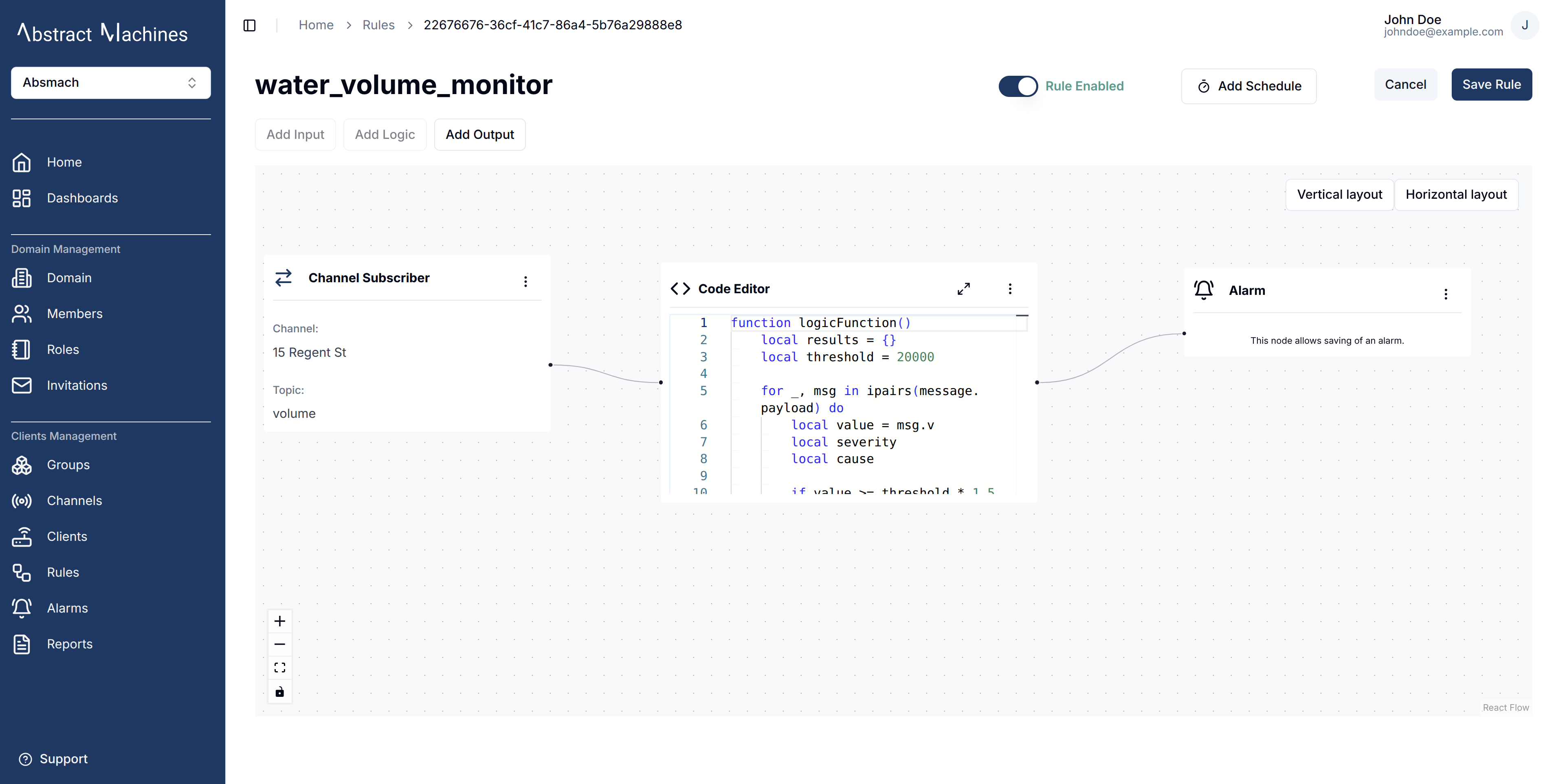

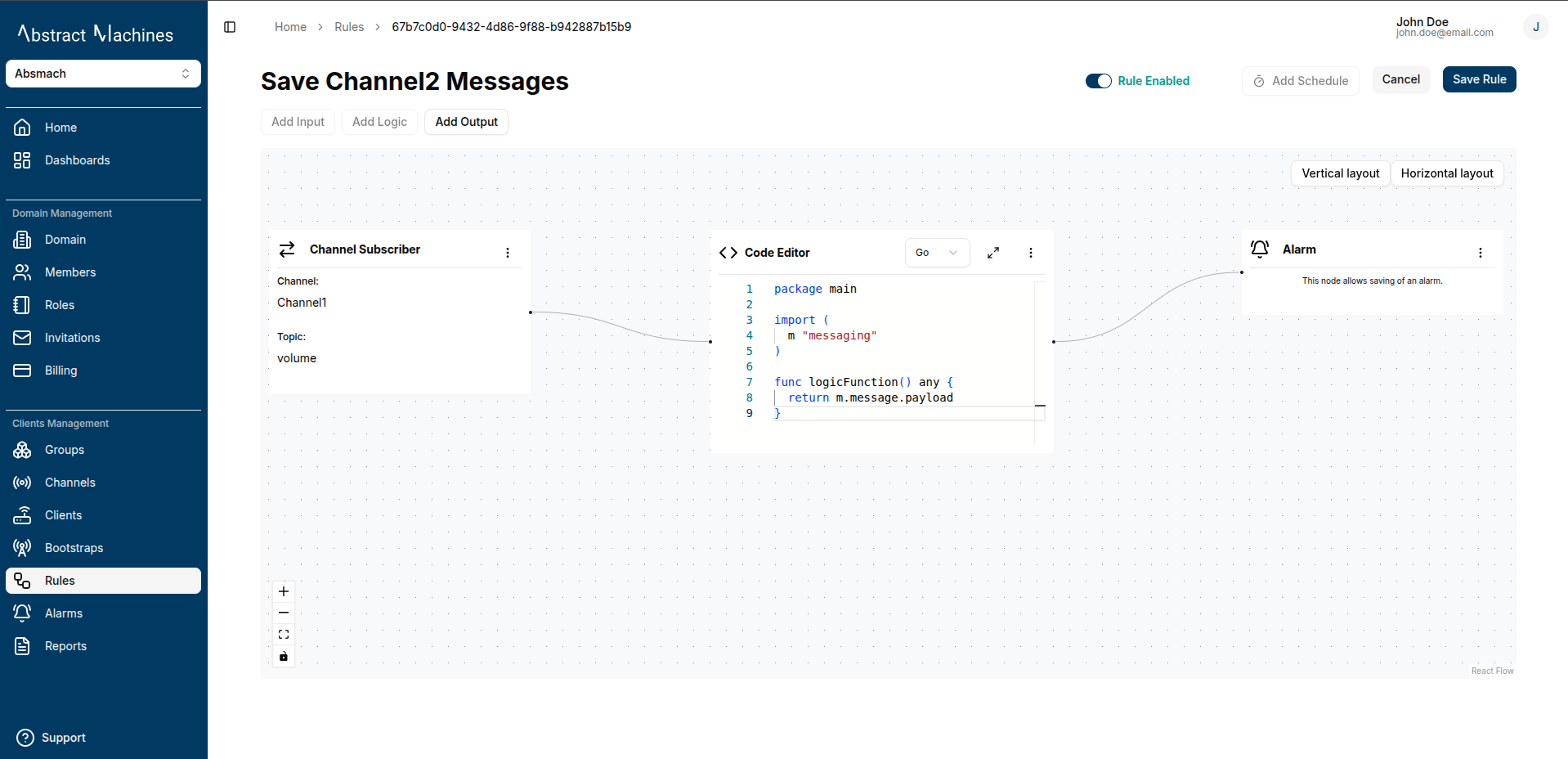

Alarms

An alarm output will enable you to be able to generate alarms in the case where a threshold has been exceeded. More information about this node is provided in the Alarms section.

Dynamic Variables and Templates

You can inject dynamic values from your message or logic result using templating variables.

Available template variables:

Variable	Description	Example
{{.Result}}	Entire output from the logic node.	{{.Result}}
{{.Result.<key>}}	Field from the logic result.	{{.Result.v}}
{{.Message.<key>}}	Field from the input message	{{.Message.Channel}}
{{(index .Result 0)}}	Access slices/arrays	{{(index .Result 0).v}}

These variables work in outputs like:

• Email (body)

• PostgreSQL (column mapping)

Example usage in Email message

Current temperature is {{.Result.CelValue}}°C  or ({{.Result.FarValue}}°F).

Example usage in PostgreSQL column mapping

{
  "channel": "{{.Message.Channel}}",
  "value":   "{{(index .Result 0).v}}",
  "unit":    "{{(index .Result 0).u}}"
}

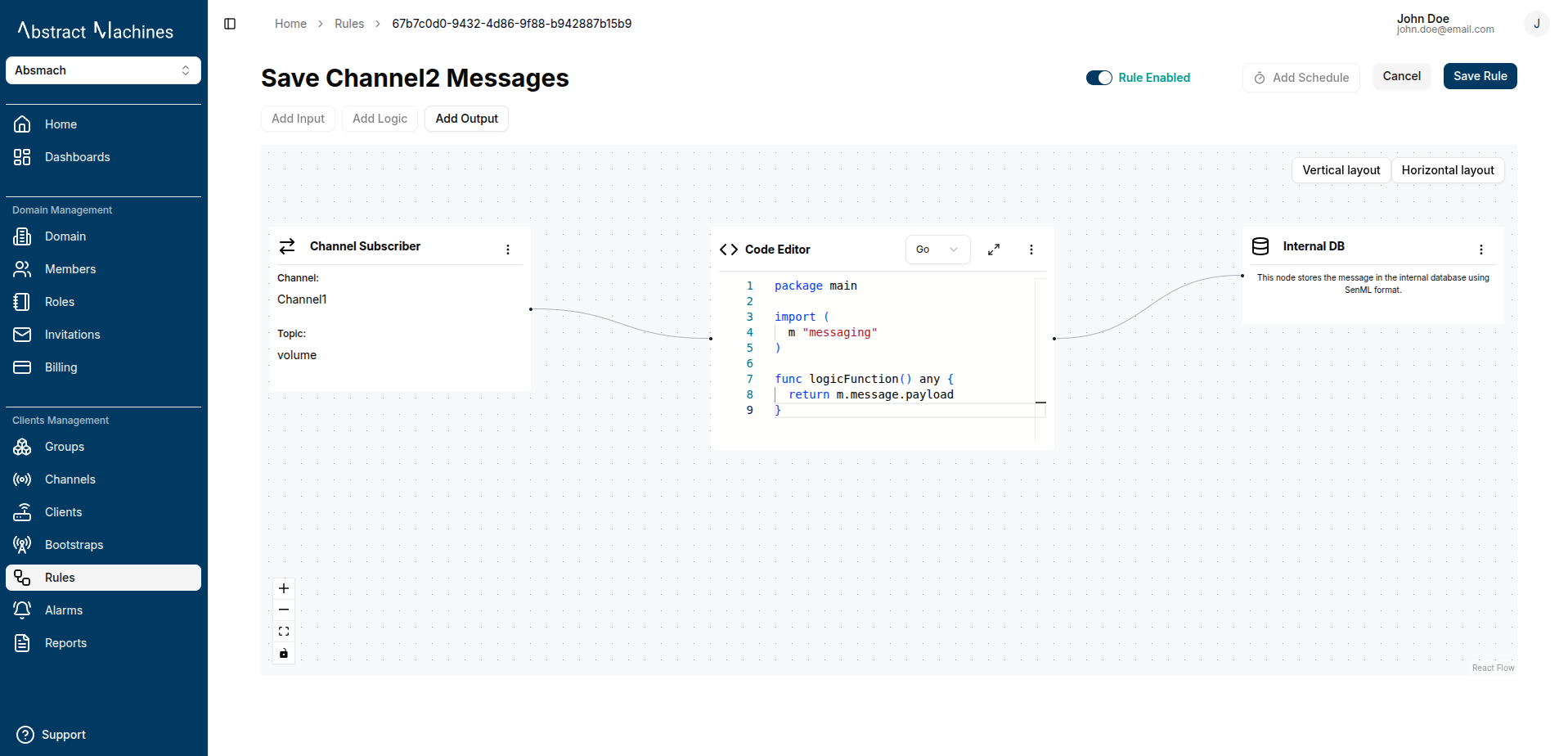

Connecting Nodes and Save

Once you've added the input, logic, and output nodes, connect them visually in the layout. Click Save to finalize the rule.

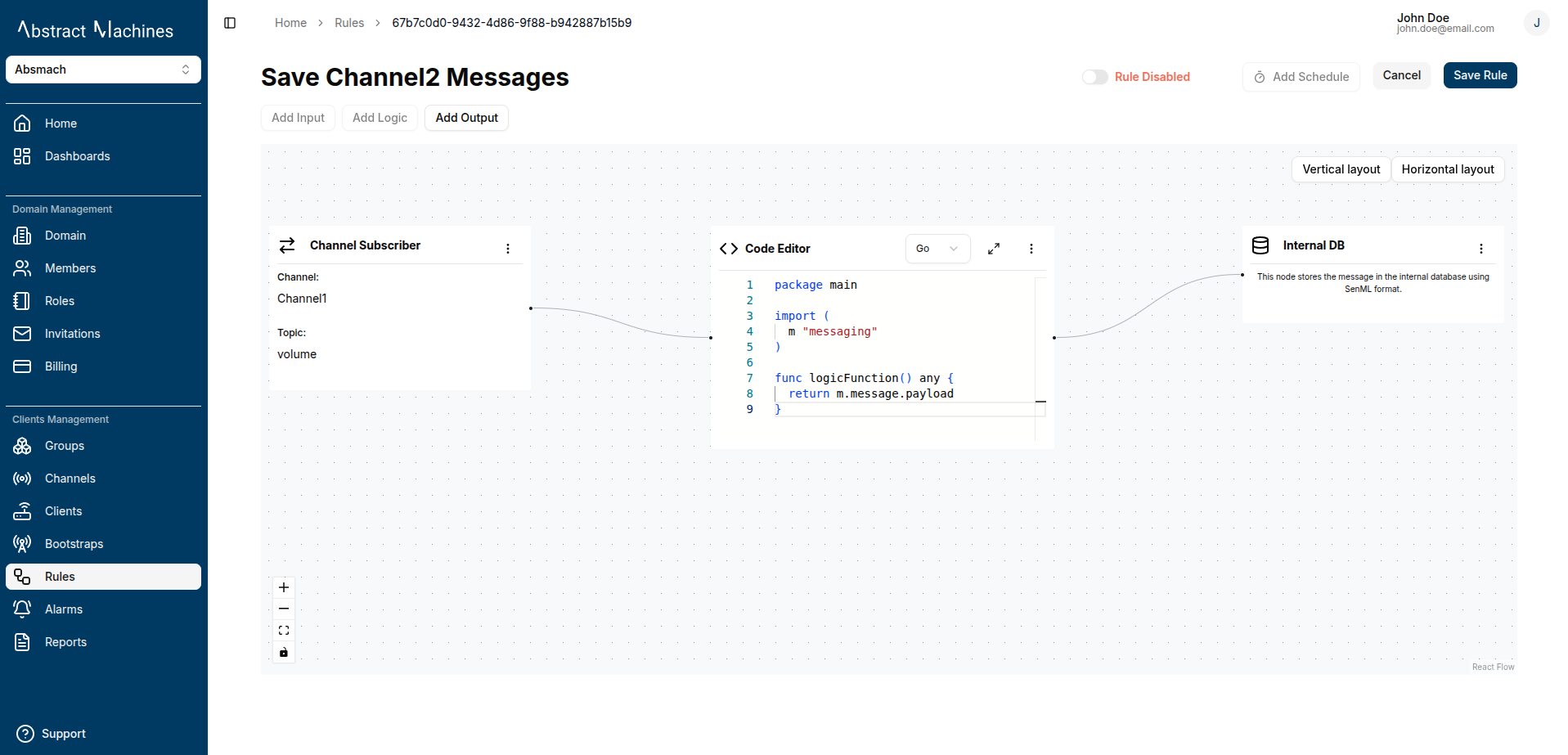

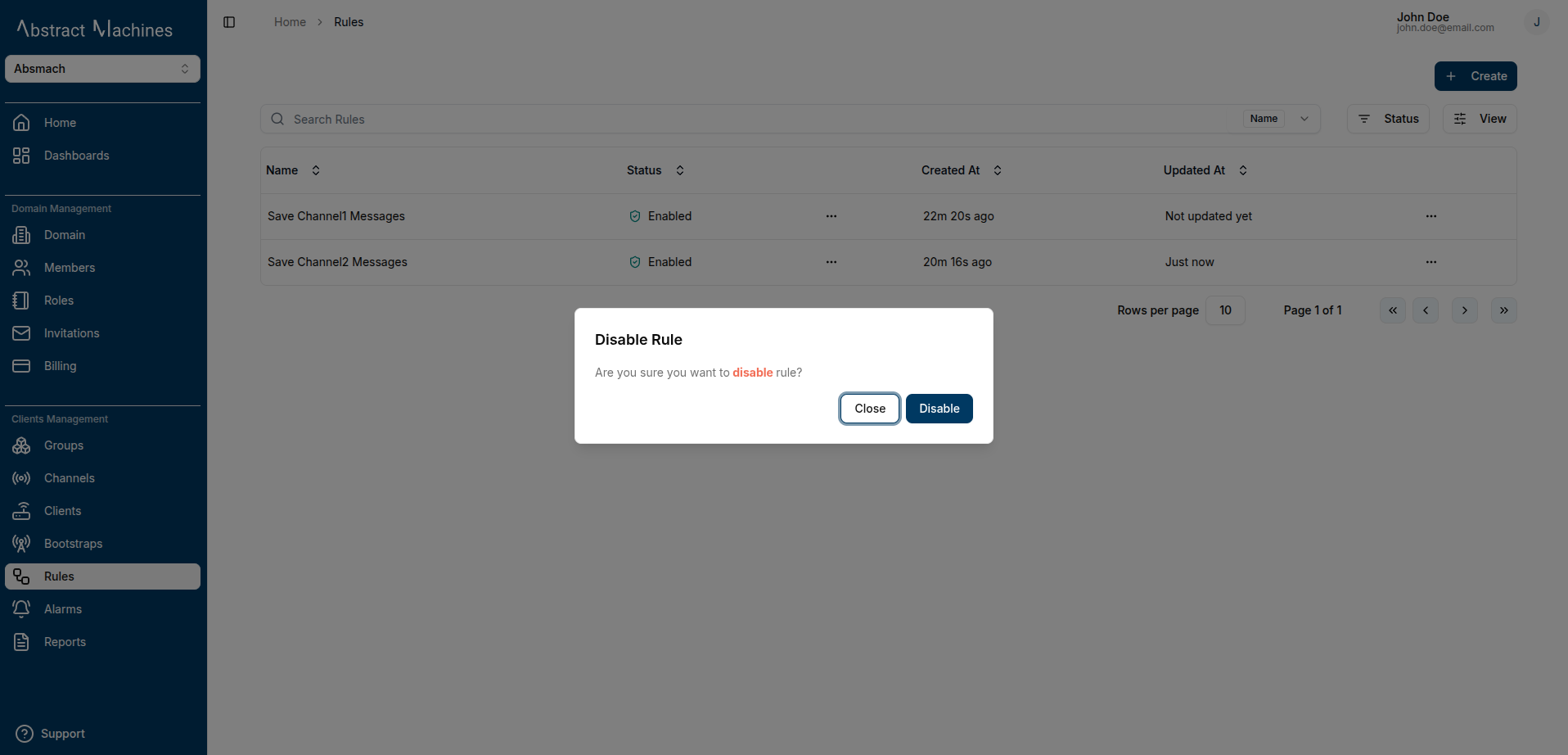

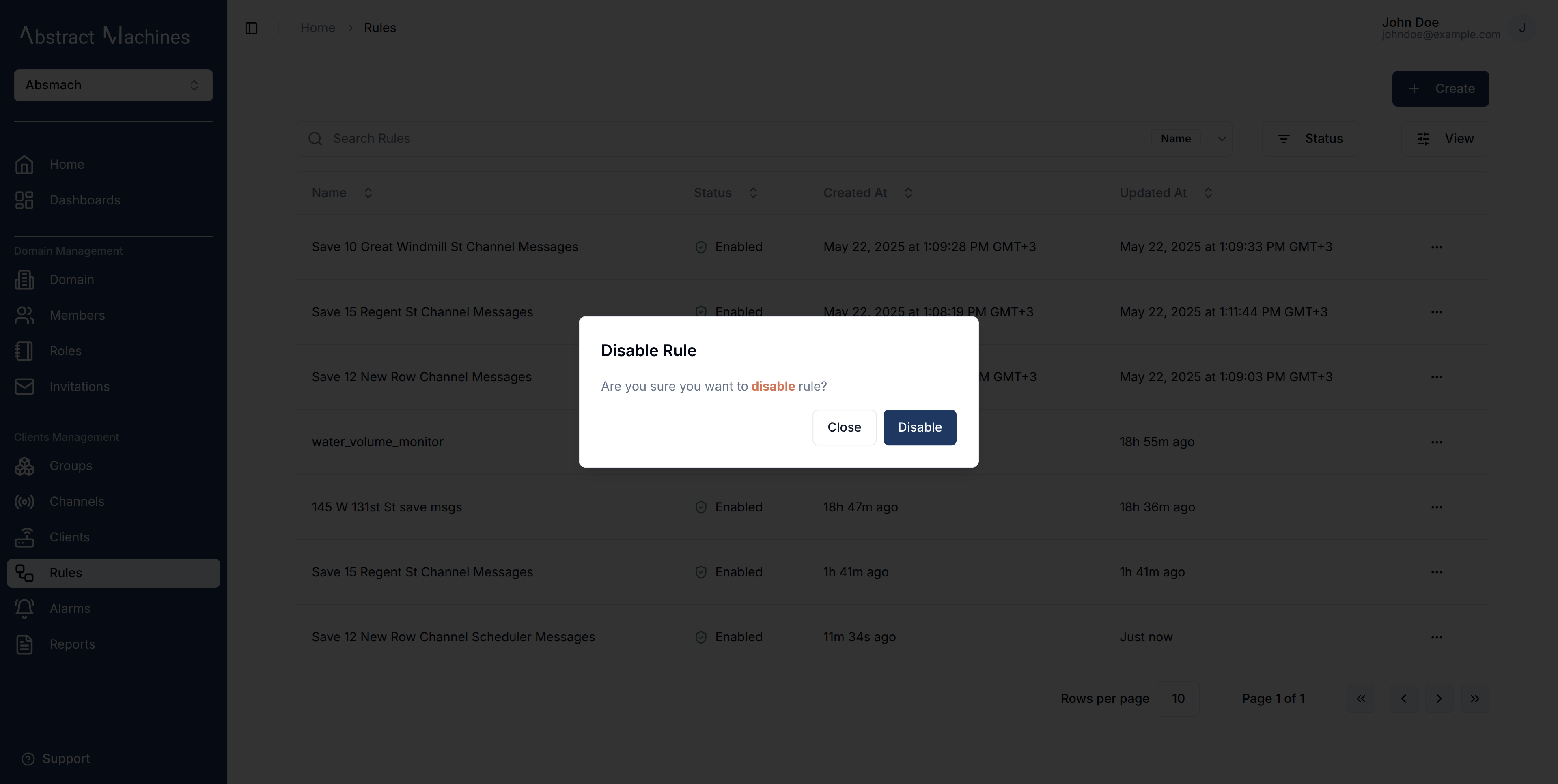

Enable or Disable Rules

To enable or disable a rule:

• Use the toggle at the top right of the rule page.



• You can also enable/disable directly from the rule list using the quick actions menu

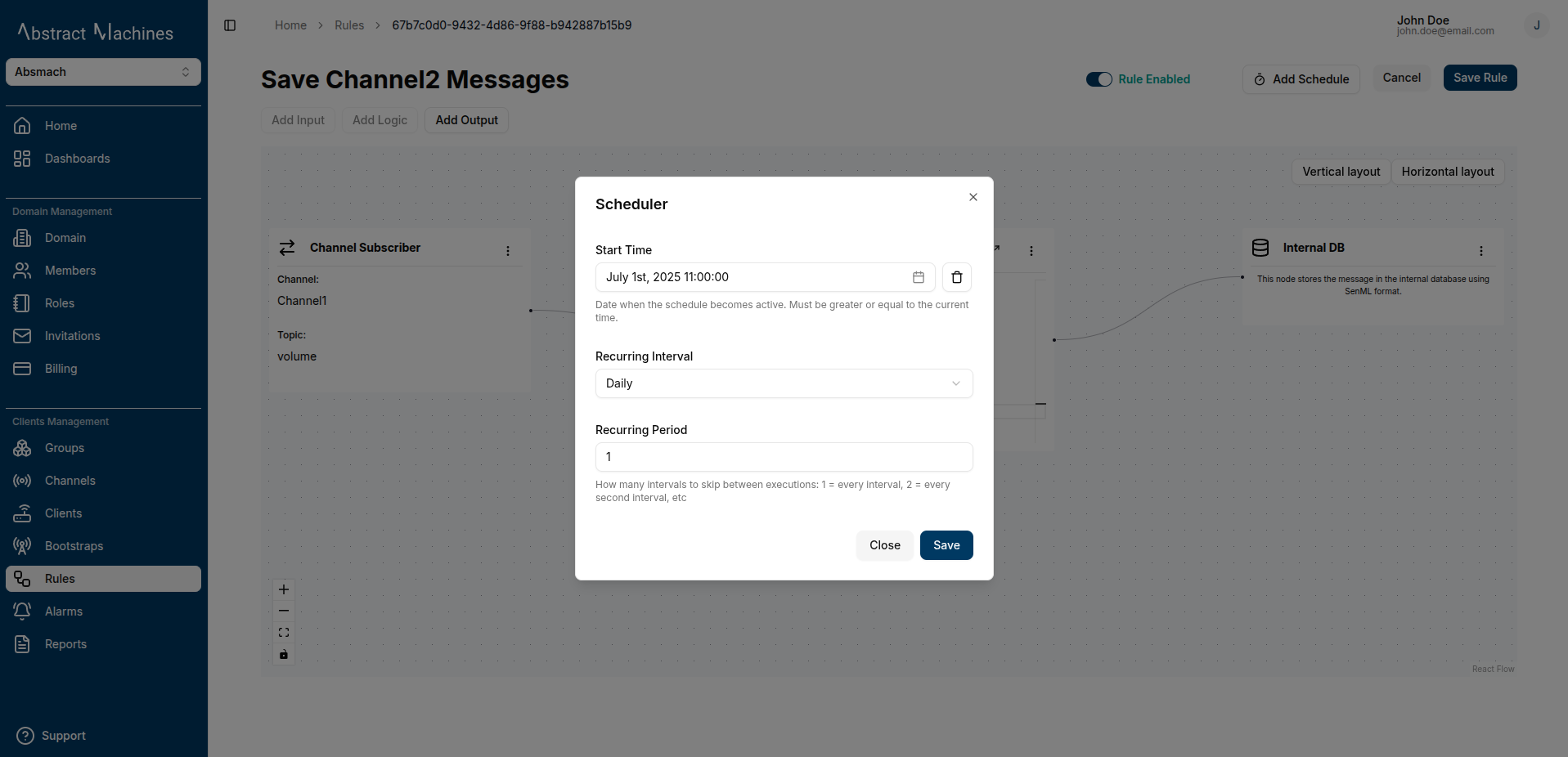

Add a Scheduler

You can configure a scheduler to define when a rule executes.

Fields:

• Start Time: Date when the schedule becomes active
• Time: Time of day the rule should run
• Recurring Interval: Unit of recurrence (e.g., daily, hourly)
• Recurring Period: Frequency of execution (e.g., every 2 intervals = every other day/hour)

This helps automate rule execution based on custom schedules.

Store Messages

To store messages in Magistrala's internal database, you must create a Rule for this.

• Magistrala only stores messages in SenML format.

• You can submit data in any format(e.g, JSON), but must convert it to SenML using a Lua script. SenML format fields:

  Name	Label	CBOR Label	JSON Type	XML Type
  Base Name	bn	-2	String	string
  Base Time	bt	-3	Number	double
  Base Unit	bu	-4	String	string
  Base Value	bv	-5	Number	double
  Base Sum	bs	-6	Number	double
  Base Version	bver	-1	Number	int
  Name	n	0	String	string
  Unit	u	1	String	string
  Value	v	2	Number	double
  String Value	vs	3	String	string
  Boolean Value	vb	4	Boolean	boolean
  Data Value	vd	8	String (*)	string (*)
  Sum	s	5	Number	double
  Time	t	6	Number	double
  Update Time	ut	7	Number	double

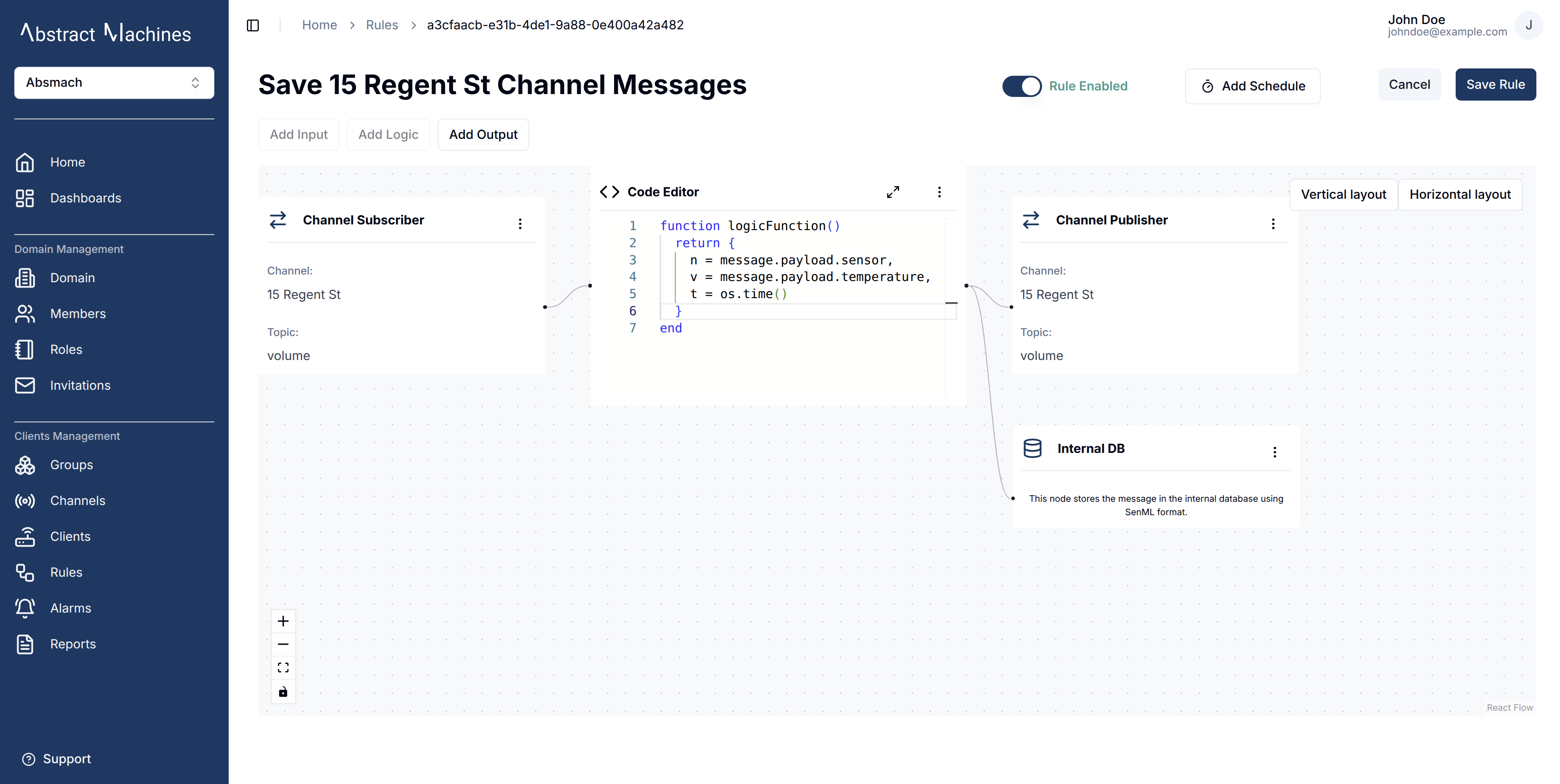

Example: Convert JSON to SenML

Assume your incoming payload is:

{
  "temperature": 28.5,
  "unit": "C",
  "sensor": "room-1"
}

Use the following scripts to convert it:

Lua script

function logicFunction()
  return {
    n = message.payload.sensor,
    v = message.payload.temperature,
    u = message.payload.unit
  }
end
return logicFunction()

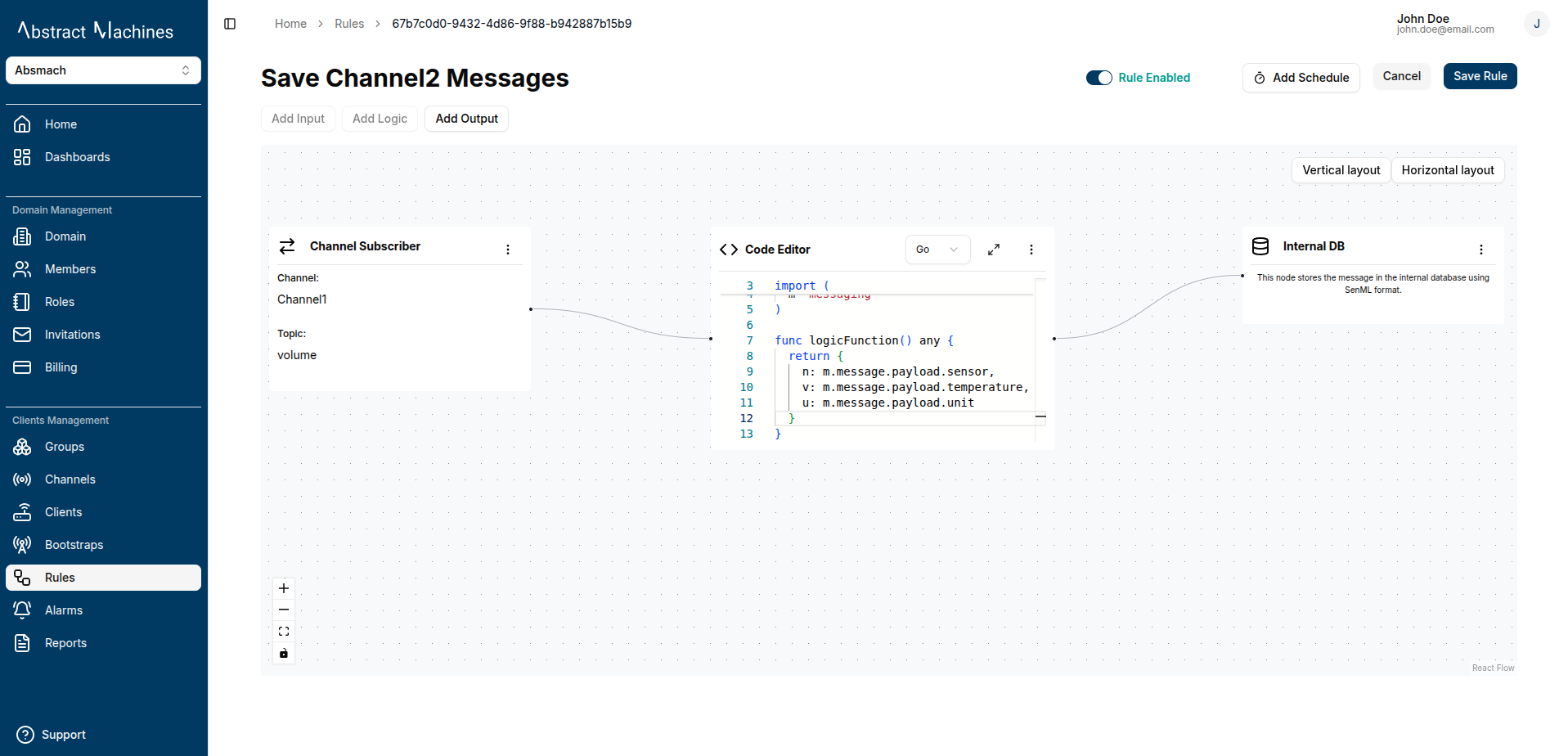

Go script

package main
import (
  m "messaging"
)

func logicFunction() any {
return {
    n: m.message.payload.sensor,
    v: m.message.payload.temperature,
    u: m.message.payload.unit
  }
}

This returns a valid SenML message the internal DB will accept.

Then set your output node to store this result using the Magistrala internal DB option.

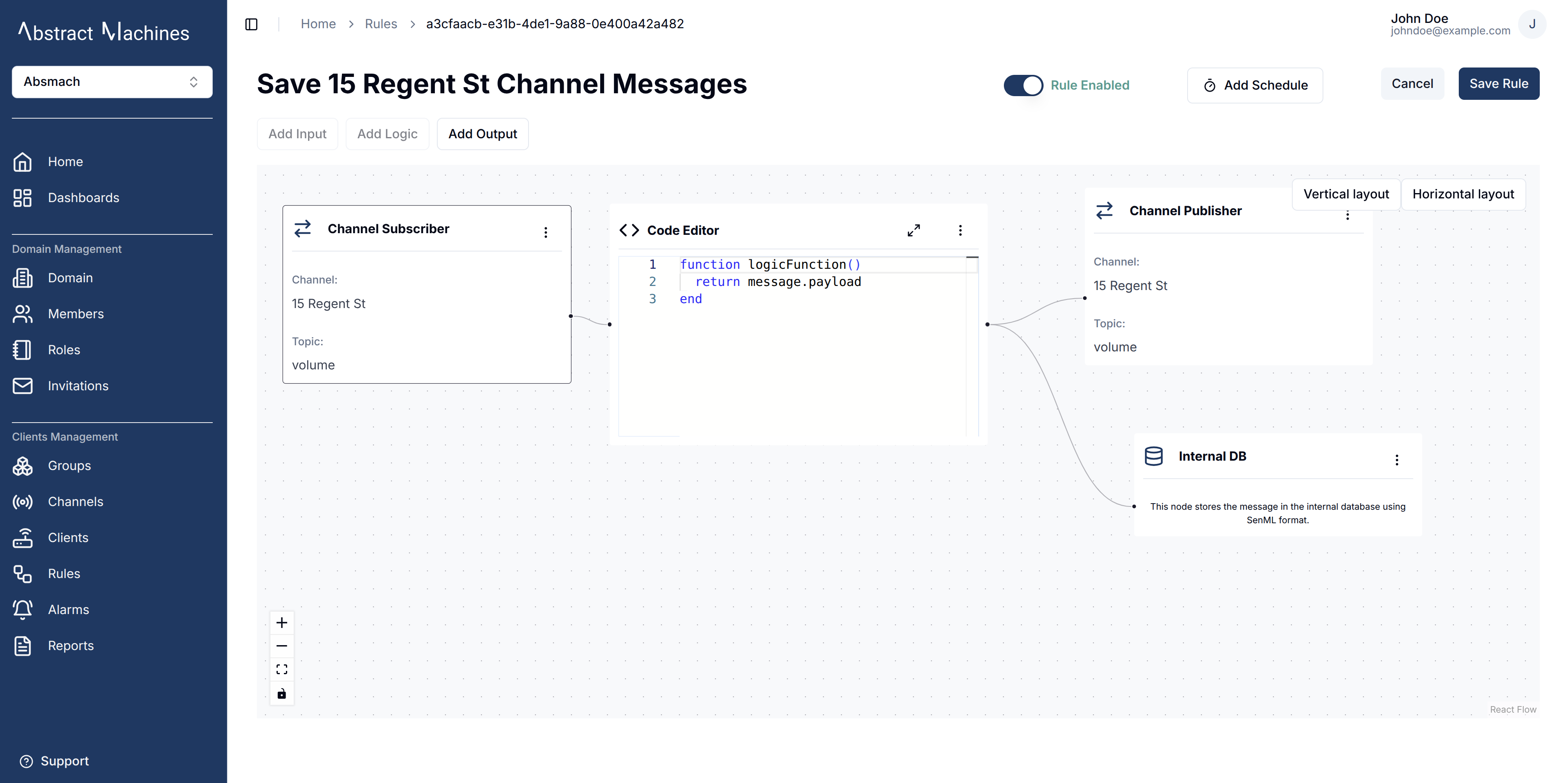

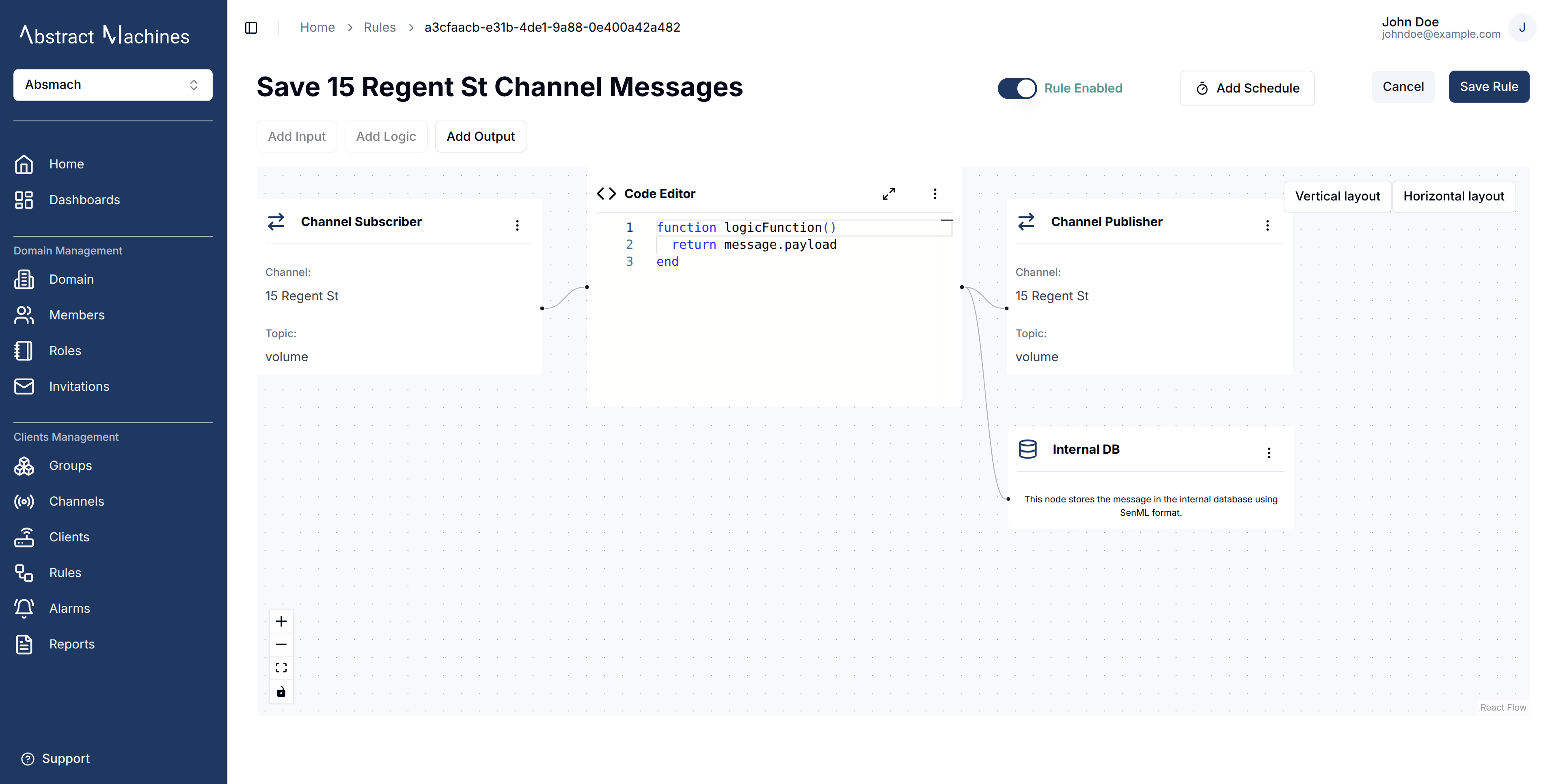

Example: Input is SenML

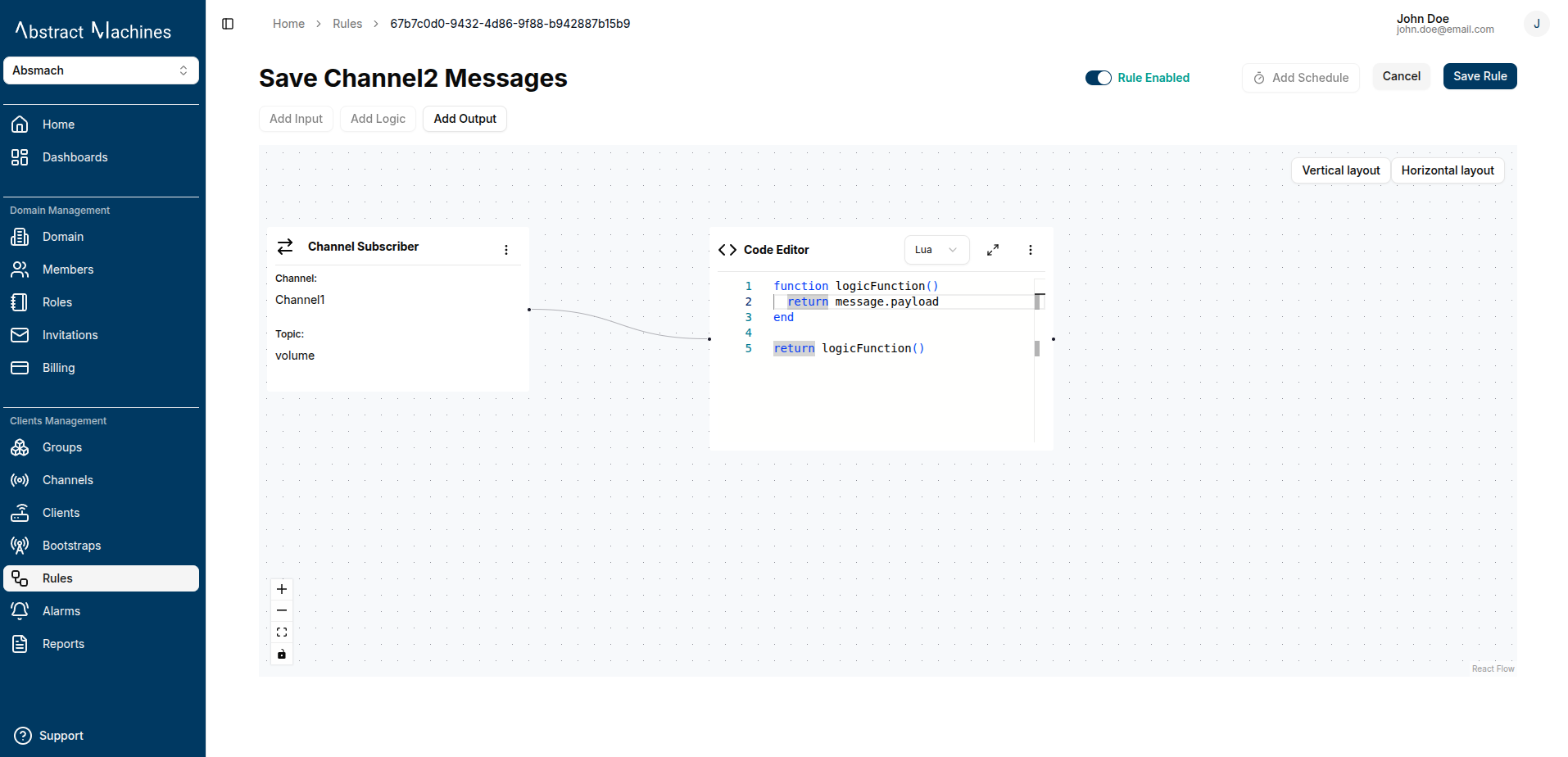

If your message payload is already SenML format, you can just return the message payload directly in your script functions:

Lua script

function logicFunction()
  return message.payload
end
return logicFunction()

Go script

  package main

  import (
      m "messaging"
  )
  func logicFunction() any {
      return m.message.Payload
  }

info

With the Rules Engine, users can easily automate data processing pipelines in a powerful and visual way by combining inputs, logical conditions, and flexible outputs.
