Rules Engine

The Rules Engine in Magistrala provides powerful, flexible message processing via scriptable rules. Each rule can consume real-time input, run on a schedule, and forward results to multiple output targets including channels, alarms, emails, databases, and more.

Key Features

1. Scriptable logic - Use Lua or Go to define message execution behavior.
2. Flexible execution - Rules can be triggered from input messages, schedules or both.
3. Pluggable outputs - Built-in support for alarms, channels, email, Postgres, and SenML writers.
4. Secure, scoped execution - Using domain-level isolation and bearer token authorization.
5. Disabled rules - Rules can be disabled individually to prevent further executions. They can also be enabled to re-start their executions.

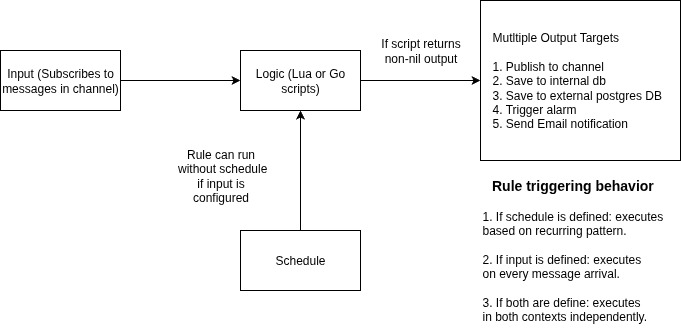

Architecture

The Magistrala Rules Engine is designed for real-time and scheduled message processing. Its architecture revolves around applying custom business logic to incoming messages or scheduled triggers and forwarding results to one or more output targets.

Data Flow Summary

1. Input The engine subscribes to a channel (and optionally a topic) to receive messages from devices, services, or pipelines in real time.

   If no schedule is defined, the rule executes every time a new message arrives on the configured channel/topic.

2. Schedule If a schedule is defined, the rule will automatically execute based on the configured:

• Start time
• Execution time
• Recurrence (daily, weekly, monthly)
• Recurring Interval (e.g 1,2,3 etc) - For example if recurrence is daily and interval is 2, it will repeat every 2 days.

3. Logic The incoming message or scheduled execution is processed using a user-defined script, written in:

• Lua
• Go

The logic must return a non-nil value for outputs to be invoked.

4. Output(s) If the script returns a value, the rules forwards the result to one or more outputs. Supported output types include:

• Channel - Forward the result to another channel and/or topic.
• Internal DB - Save processed data internally.
• Postgres DB - Store result in a connected Postgres database table.
• Alarm - Raise and alarm event with a severity level.
• Email - Send notifications to configured recipients.

Core Concepts

Rules define the logic for processing messages. Each rule may specify:

• An input channel and topic to subscribe to (optional if the rule is scheduled).
• A processing script written in Lua or Go.
• A list of outputs that define where to send or store the results.
• An optional schedule to control when the rule is executed.
• A rule must have at least one of input or schedule to be executed.

Rule Structure

type Rule struct {
  ID           string            `json:"id"`
  Name         string            `json:"name"`
  DomainID     string            `json:"domain"`
  Metadata     Metadata          `json:"metadata,omitempty"`
  Tags         []string          `json:"tags,omitempty"`
  InputChannel string            `json:"input_channel"`
  InputTopic   string            `json:"input_topic"`
  Logic        Script            `json:"logic"`
  Outputs      Outputs           `json:"outputs,omitempty"`
  Schedule     schedule.Schedule `json:"schedule,omitempty"`
  Status       Status            `json:"status"`
  CreatedAt    time.Time         `json:"created_at"`
  CreatedBy    string            `json:"created_by"`
  UpdatedAt    time.Time         `json:"updated_at"`
  UpdatedBy    string            `json:"updated_by"`
}

Property	Description	Required
id	Unique identifier for the rule.	Auto-generated
name	Descriptive name of the rule.	✅
domain	Domain ID associated with the rule.	✅
tags	Optional list of tags for categorization	Optional
input_channel	Channel to listen for incoming messages	✅
input_topic	Topic within the input channel.	Optional
logic	Script (Lua or Go) defining message processing.	✅
outputs	List of outputs to send results to.	✅
schedule	Scheduling configuration	Optional
status	Rule state (enabled or disabled or deleted)	✅
created_at	Timestamp when the rule was created.	Auto-generated
updated_at	Timestamp when the rule was last updated.	Auto-generated
metadata	Additional rule metadata	Optional

Note: A rule must have either an input_channel or a schedule or both. If input_channel is omitted, the rule only executes on schedule.

Scheduling Rules

type Schedule struct {
  StartDateTime   time.Time `json:"start_datetime,omitempty"`
  Time            time.Time `json:"time,omitempty"`
  Recurring       Recurring `json:"recurring,omitempty"`
  RecurringPeriod uint      `json:"recurring_period,omitempty"`
}

Property	Description
start_datetime	When the rule becomes active.
time	Time of day the rule is scheduled to run
recurring	Recurrence pattern (None, Daily, Weekly, Monthly)
recurring_period	Interval multiplier (e.g. 2 = every second interval)

Recurring Patterns Explained:

• Daily: Runs every day at the specified time.
• Weekly: Runs on the same day of the week.
• Monthly: Runs on the same day each month.

Scheduling Behavior:

• If schedule is present and input_channel is not set, the rule runs at scheduled intervals.
• If both are present, the rule can execute based on incoming messages and on schedule.

Recurring Patterns Explained:

• Daily: Runs every day at the specified time.
• Weekly: Runs on the same day of the week.
• Monthly: Runs on the same day each month.

How Scheduling Works

1. Initialization:

   • The scheduler starts when the service begins running via StartScheduler()
   • It uses a ticker to check for rules that need to be executed at regular intervals

2. Rule Evaluation:

   • For each tick, the scheduler:
     • Gets all enabled rules scheduled before the current time
     • For each rule, checks if it should run using shouldRunRule()
     • If a rule should run, processes it asynchronously

3. Execution Timing: The shouldRunRule() function determines if a rule should run by checking:

   • If the rule's start time has been reached
   • If the current time matches the scheduled execution time
   • For recurring rules:
     • Daily: Checks if the correct number of days have passed since start
     • Weekly: Checks if the correct number of weeks have passed since start
     • Monthly: Checks if the correct number of months have passed since start

4. Recurring Patterns:

   • None: Rule runs once at the specified time
   • Daily: Rule runs every N days where N is the RecurringPeriod
   • Weekly: Rule runs every N weeks
   • Monthly: Rule runs every N months

For example, to run a rule:

• Every day at 9 AM: Set recurring to "daily" with recurring_period = 1
• Every other week: Set recurring to "weekly" with recurring_period = 2
• Monthly on the 1st: Set recurring to "monthly" with recurring_period = 1

Rule Logic

Scripts define the logic to process messages. Two scripting types are supported:

Type	Language	Key Info
0	Lua	Lightweight and flexible scripting language
1	Go	Scripts compiled and executed using Go plugins

Lua Example:

function logicFunction()
  local converted_temp = (message.payload.v * 1.8 + 32)
  return {n = "Temp_fahrenheit", v = converted_temp, u = "°F"}
end
return logicFunction()

Go Example:

package main
import (
    m "messaging"
)
func logicFunction() any {
    return m.message.Payload
}

The script should return a value if it triggers an action. Otherwise, it should return nil.

Supported Message Formats

The Rules Engine supports multiple message formats, but when storing messages to the internal database, the payload must be in SenML format.
Valid SenML Example:

[
  { "bn": "building1/", "n": "temperature", "u": "Cel", "v": 23.5 },
  { "n": "status", "vs": "OK" }
]

Constraints:

• Each entry must have a unique n
• Only one value field (v, vs, vb, vd) per entry
• bn, u, and t are optional

Invalid Example (duplicate n and multiple values)

[
  {
    "n": "temperature",
    "v": 23.5,
    "n": "status",
    "vs": "OK"
  }
]

Invalid Example (more than one value field)

[
  {
    "n": "status",
    "v": 1,
    "vs": "OK"
  }
]

Special Characters in n

Avoid using special characters in the n (name) field, such as:

• Slashes (/)
• Emojis
• Symbols like @, #, :

These may break internal parsing or rule pattern matching.

Output Handling

The outputs field allows a rule to define multiple destinations or actions for its result. Supported output types include:

1. channels: Publishes the result to a specific channel/topic.
2. save_senml: Stores messages in Magistrala’s internal database.
3. save_remote_pg: Forwards the result to an external PostgreSQL database.
4. alarms: Triggers an alarm with a structured severity report.
5. email: Sends a notification email.

channels

type ChannelPublisher struct {
  Type    string  `json:"type"`
  Channel string  `json:"channel"`
  Topic   string  `json:"topic"`
}

save_senml

type SenML struct {
  Type    string  `json:"type"`
}

save_remote_pg

type Postgres struct {
  Type    string  `json:"type"`
  Host     string `json:"host"`
  Port     int    `json:"port"`
  User     string `json:"user"`
  Password string `json:"password"`
  Database string `json:"database"`
  Table    string `json:"table"`
  Mapping  string `json:"mapping"`
}

alarms

type Alarms struct {
  Type    string  `json:"type"`
  RuleID  string  `json:"rule_id"`
}

email

type Email struct {
  Type    string    `json:"type"`
  To      []string  `json:"to"`
  Subject string    `json:"subject"`
  Content string    `json:"content"`
}

Each output type expects a different data structure depending on its destination. For example, if your output is save_senml, it expects the result of the logic to be a valid SenML message. e.g.

function logicFunction()
  return {
    n = message.payload.sensor,
    v = message.payload.temperature,
    u = message.payload.unit
  }
end
return logicFunction()

If the output is an alarm, it expects the result of the logic to be a valid alarm object. e.g.

function logicFunction()
    local results = {}
    local threshold = 20000

    for _, msg in ipairs(message.payload) do
        local value = msg.v
        local severity
        local cause

        if value >= threshold * 1.5 then
            severity = 5
            cause = "Critical level exceeded"
        elseif value >= threshold * 1.2 then
            severity = 4
            cause = "High level detected"
        elseif value >= threshold then
            severity = 3
            cause = "Threshold reached"
        end

        table.insert(results, {
            measurement = msg.n,
            value = tostring(value),
            threshold = tostring(threshold),
            cause = cause,
            unit = msg.unit,
            severity = severity
        })
    end

    return results
end
return logicFunction()

Topic Rewriting and . Operator

MQTT topics received by Magistrala are rewritten into dot-separated strings for Rules Engine processing. For example:

Topic:

m/<domain_id>/c/<channel_id>/building1/floor2/temp

Becomes:

channels.<channel_id>.building1.floor2.temp

This means:

• MQTT / separators are rewritten as . internally
• Rules matching input_topic or using message.subtopic must use dot-separated format
• Every empty segment (e.g. double slashes //) is removed

Rule Status

Rules can have one of the following statuses:

• Enabled: The rule is active and processes incoming messages.
• Disabled: The rule is inactive and does not process messages.
• Deleted - The rule is marked for deletion

API Operations

The Rules Engine API exposes several endpoints for managing rules. All requests require a valid JWT Bearer Token for authentication.

The Base URL: http://localhost:9008

The Rules Engine service provides the following operations:

• create_rule - Create a new rule
• list_rules - Query rules with filtering options
• view_rule - Retrieve a specific rule
• update_rule - Modify an existing rule
• update_rule_tags- Modify tags
• update_rule_scheduler - Update rule schedule
• delete_rule - Delete a rule
• enable_rule - Activate a rule
• disable_rule - Deactivate a rule

Create Rule

Endpoint: POST /{domain_id}/rules

Example command:

curl --location 'http://localhost:9008/<your_domain_id>/rules' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <your_access_token>' \
--data '{
  "name": "High Temperature Alert",
  "input_channel": "<your_channel_id>",
  "input_topic": "temperature",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [
    {
      "type": "save_senml"
    }
  ],
  "schedule": {
    "start_datetime": "2025-07-29T09:00:00Z", // must be greater than the current date-time
    "time": "2025-07-29T11:00:00Z",
    "recurring": "daily",
    "recurring_period": 1
  }
}'

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temperature Alert",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "input_channel": "3214f360-cebd-449b-bc3c-9020a3be403a",
  "input_topic": "temperature",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T04:52:21Z",
    "time": "2025-07-29T04:52:21Z",
    "recurring": "daily",
    "recurring_period": 1
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "0001-01-01T00:00:00Z",
  "updated_by": ""
}

View Rule

Enpoint: Get /{domain_id}/rules/{rule_id}

Example command:

curl --location 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>' \
--header 'Authorization: Bearer <your_access_token>'

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temperature Alert",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "input_channel": "3214f360-cebd-449b-bc3c-9020a3be403a",
  "input_topic": "temperature",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T04:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "daily",
    "recurring_period": 1
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T04:52:45.844481Z",
  "updated_by": ""
}

List Rules

Endpoint: GET /{domain_id}/rules

Query Parameters:

• offset: Pagination offset
• limit: Maximum number of results
• input_channel: Filter by input channel
• status: Filter by rule status

Example command:

curl --location 'http://localhost:9008/<your_domain_id>/rules?input_channel=<your_channel_id>&status=enabled' \
--header 'Authorization: Bearer <your_access_token>'

Response

{
  "offset": 0,
  "limit": 10,
  "total": 1,
  "rules": [
    {
      "id": "d4b5c393-70fc-4399-829c-070df5205698",
      "name": "High Temperature Alert",
      "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
      "input_channel": "3214f360-cebd-449b-bc3c-9020a3be403a",
      "input_topic": "temperature",
      "logic": {
        "type": 0,
        "value": "function logicFunction() return message.payload end return logicFunction()"
      },
      "outputs": [{ "type": "save_senml" }],
      "schedule": {
        "start_datetime": "2025-07-29T04:52:21Z",
        "time": "2025-07-30T04:52:21Z",
        "recurring": "daily",
        "recurring_period": 1
      },
      "status": "enabled",
      "created_at": "2025-07-29T04:52:21.358252Z",
      "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
      "updated_at": "2025-07-29T04:52:45.844481Z",
      "updated_by": ""
    }
  ]
}

Update Rule

Endpoint: PATCH /{domain_id}/rules/{rule_id}

Example command:

curl --location --request PATCH 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <your_access_token>' \
--data '{
  "name": "High Temp Alert Updated"
}'

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temp Alert Updated",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "input_channel": "",
  "input_topic": "",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T04:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "daily",
    "recurring_period": 1
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T05:07:49.681315Z",
  "updated_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a"
}

Update Rule Tags

Endpoint: PATCH /{domain_id}/rules/{rule_id}/tags

Example command:

curl --location --request PATCH 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>/tags' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <your_access_token>' \
--data '{
  "tags": ["tag1","tag2"]
}'

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temp Alert Updated",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "tags": ["tag1", "tag2"],
  "input_channel": "",
  "input_topic": "",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T04:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "daily",
    "recurring_period": 1
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T05:10:54.991749Z",
  "updated_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a"
}

Update Rule Scheduler

Endpoint: PATCH /{domain_id}/rules/{rule_id}/schedule

Example command:

curl --location --request PATCH 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>/schedule' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer <your_access_token>' \
--data '{
    "schedule": {
    "start_datetime": "2025-07-29T10:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "weekly",
    "recurring_period": 2
  }
}'

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temp Alert Updated",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "tags": ["tag1", "tag2"],
  "input_channel": "",
  "input_topic": "",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T10:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "weekly",
    "recurring_period": 2
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T05:13:05.877133Z",
  "updated_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a"
}

---

Disable Rule

Endpoint: POST /{domain_id}/rules/{rule_id}/disable

Example Command:

curl --location --request POST 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>/disable' \
--header 'Authorization: Bearer <your_access_token>' \

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temp Alert Updated",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "tags": ["tag1", "tag2"],
  "input_channel": "",
  "input_topic": "",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T10:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "weekly",
    "recurring_period": 2
  },
  "status": "disabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T05:16:36.254008Z",
  "updated_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a"
}

Responses:

Status Code	Description
200	Rule disabled successfully.
400	Invalid rule ID.
401	Unauthorized access.
404	Rule not found.
500	Internal server error.

---

Enable Rule

Endpoint: POST /{domain_id}/rules/{rule_id}/enable

The API endpoint follows the format: http://localhost:9008/{domain_id}/rules/{ruleID}/enable

curl --location --request POST 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>/enable' \
--header 'Authorization: Bearer <your_access_token>' \

Response

{
  "id": "d4b5c393-70fc-4399-829c-070df5205698",
  "name": "High Temp Alert Updated",
  "domain": "3bf0d3e6-5383-4838-96a7-52c18da0aca0",
  "tags": ["tag1", "tag2"],
  "input_channel": "",
  "input_topic": "",
  "logic": {
    "type": 0,
    "value": "function logicFunction() return message.payload end return logicFunction()"
  },
  "outputs": [{ "type": "save_senml" }],
  "schedule": {
    "start_datetime": "2025-07-29T10:52:21Z",
    "time": "2025-07-30T04:52:21Z",
    "recurring": "weekly",
    "recurring_period": 2
  },
  "status": "enabled",
  "created_at": "2025-07-29T04:52:21.358252Z",
  "created_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a",
  "updated_at": "2025-07-29T05:17:12.534919Z",
  "updated_by": "ae03cf7d-f2e8-49ac-ab28-17481635322a"
}

Responses:

Status Code	Description
200	Rule enabled successfully.
400	Invalid rule ID.
401	Unauthorized access.
404	Rule not found.
500	Internal server error.

---

Delete Rule

Endpoint: DELETE /{domain_id}/rules/{rule_id} Example Command:

curl --location --request DELETE 'http://localhost:9008/<your_domain_id>/rules/<your_rule_id>' \
--header 'Authorization: Bearer <your_access_token>' \

Responses:

Status Code	Description
204	Rule deleted.
400	Invalid rule ID.
401	Unauthorized access.
404	Rule not found.
500	Internal server error.

---

Error Codes

HTTP Code	Description
400	Invalid request or parameters.
401	Unauthorized: Missing/invalid token.
403	Forbidden: Access denied.
404	Resource not found.
415	Unsupported content type.
500	Internal server error.

🌟 Best Practices

1. Use Descriptive Names – Choose names that clearly convey the rule's purpose.
2. Validate Your Scripts – Whether Lua or Go, ensure the script returns the correct output format.
3. Regularly Monitor Rules – Periodically review rule execution logs.
4. Schedule Thoughtfully – Avoid overlapping rule executions unless necessary.
5. Keep Output Aligned – Match your logic output format to the selected output type (e.g., alarm, database, publish).
6. Test New Rules – Test rules in a controlled environment before deployment.
