Clients

A Client in Magistrala can be a device or an application that can be used to publish or subscribe to messages.

Create a Client

To create a client, click on the + Create button present on the top-left corner of the page. You can also create multiple clients by clicking on the + Create Clients button and uploading a .csv file with client names and any other fields you would like to add.

Client Information

Add a client name and optionally a key (has to be unique), tags and metadata.

The client key will be used to authorize the device to send messages.

Bulk Creation

You can be able to create clients in bulk by uploading a .csv file with the following fields in order:

1. Name (Required)
2. Secret
3. Tags
4. Metadata

A sample of the .csv file can be found here.

View a Client

After creating a client, you will be able to see the created client on the clients table. To view that client click on the row or the view button in the row actions

This will lead you to the client configuration page, where you can view all the client configurations.

Configurations

This page consists of both the client configurations which are the client details and the bootstrap configuration which are the bootstrap details for the client.

Client Configuration

This section enables a user to update the following client details:

1. Name
2. Client Key
3. Tags
4. Metadata
5. Status

To update a field, click on the pencil icon on the far end of the field to edit. Once you have updated the value, click on the tick icon to update the changes or the cross icon to cancel the change. To update the client status, toggle the switch on the far end of the status field.

Bootstrap Configuration

Bootstrap configuration of a client allows bootstrapping of the device (self-starting process that proceeds without external input). Further details of bootstrapping are discussed in the Bootstrap section.

To add a bootstrap configuration, click on the Add Configuration button.

A dialog box will appear allowing you to enter the following fields

1. Name (required) - A unique name for the bootstrap configuration
2. External ID (required)
3. External Key (required)
4. Channels (required) - The channels the client will connect to.
5. Content (optional)
6. Encryption Settings (optional)
   • Client Cert
   • Client Key
   • CA Cert

Connect to a Channel

Navigate to the Connections section of the client navigation. This will lead you to the connections page where you can view the channels a client is connected to.

In this page you are able to add a connection by clicking on the Connect button on the top right corner.

This opens up a dialog box that allows you to select the channels you want to connect to and with which connection type. A client can have both connection types selected.
There are two connection type options:

1. Publish: Allows the client to send messages in the channel
2. Subscribe: Allows the client to read messages in the channel

To disconnect from the channel, click on the Disconnect button at the end of the channel row.

This will open up a dialog that allows you to select which connection type you want to remove. You can remove one or both of the connection types if you have multiple.

Client Members

Roles

Roles allow you to group a specific set of actions and allocate them to users. To create a role, navigate to the roles section on the client navbar. Click on the + Create button and provide a role name. The actions and members are optional fields.

Role Information

The role name is complusory. You can optionally provide the role actions by selecting from the available actions. You can also optionally provide the members by searching for a user with their username.

The following is the list of available actions for a client:

• update
• read
• delete
• set_parent_group
• connect_to_channel
• manage_role
• add_role_users
• view_role_users
• remove_role_users

Update

To update a role name, click on the pencil icon on the far right end of the field, update the value then click on the tick icon to update the changes or the cross icon to cancel the changes.

To update the actions and members click on the pencil icon, it will pop up a dialog box allowing you to select the actions and users you want to add.

Delete

You can also delete actions and members by clicking on the trash icon. It pops up a dialog that allows you to select which action or member you want to remove. Optionally you can delete all of the actions or members by clicking on the Delete All Actions or Delete All Members buttons.

Users

This feature is currently under development 🔨

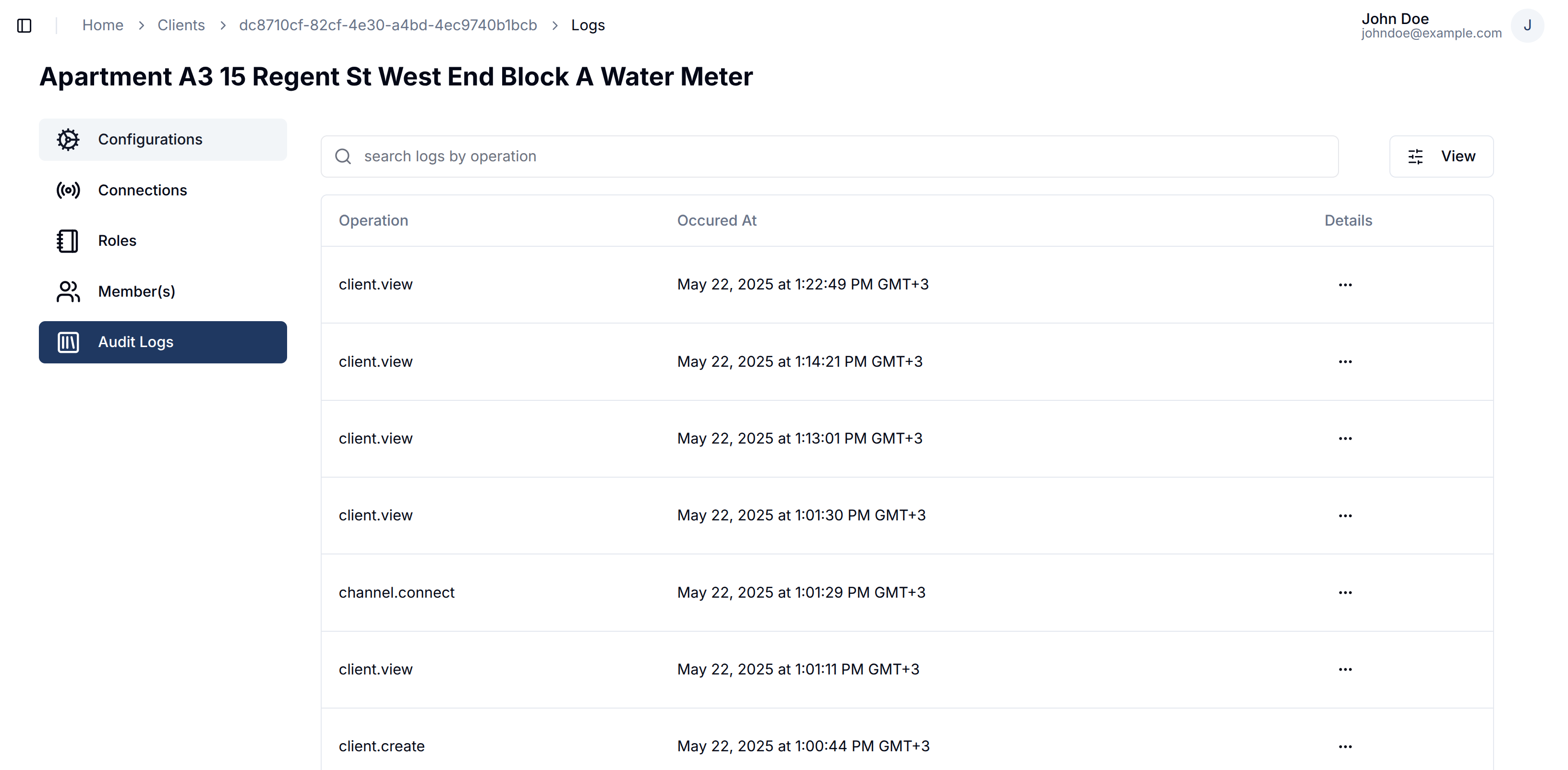

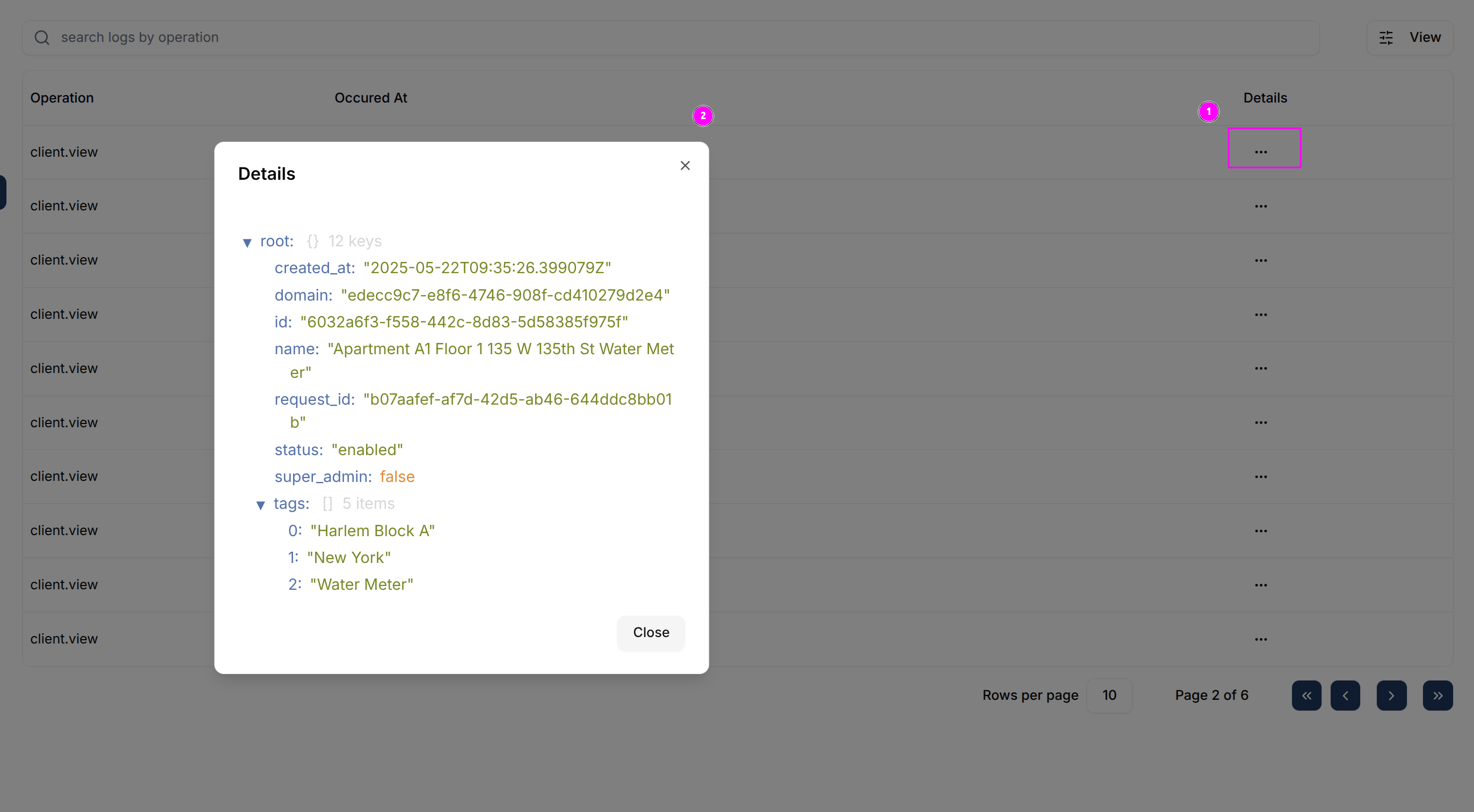

Audit Logs

Audit logs track all group events, from creation to updates and disabling.

This feature is currently under development 🔨
